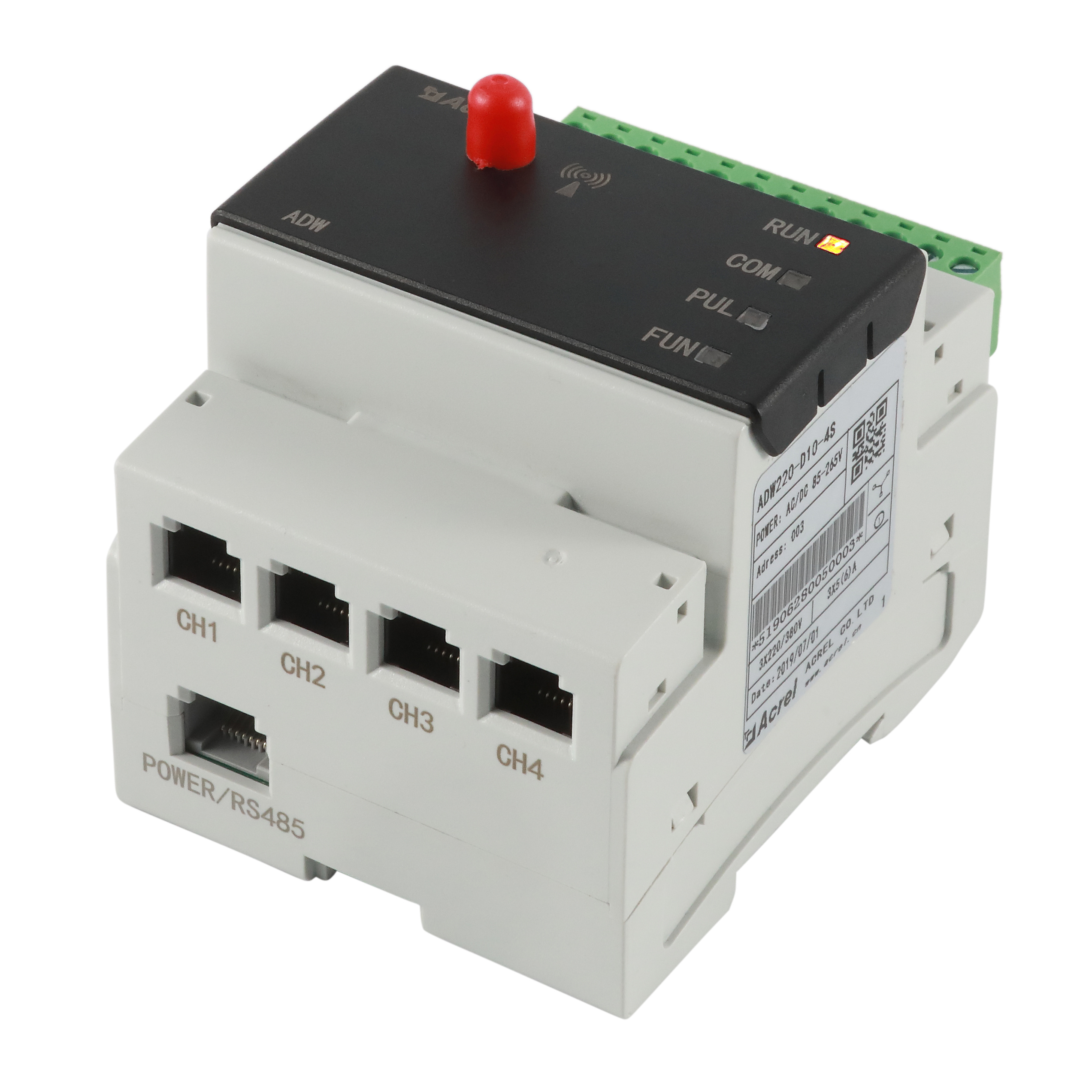

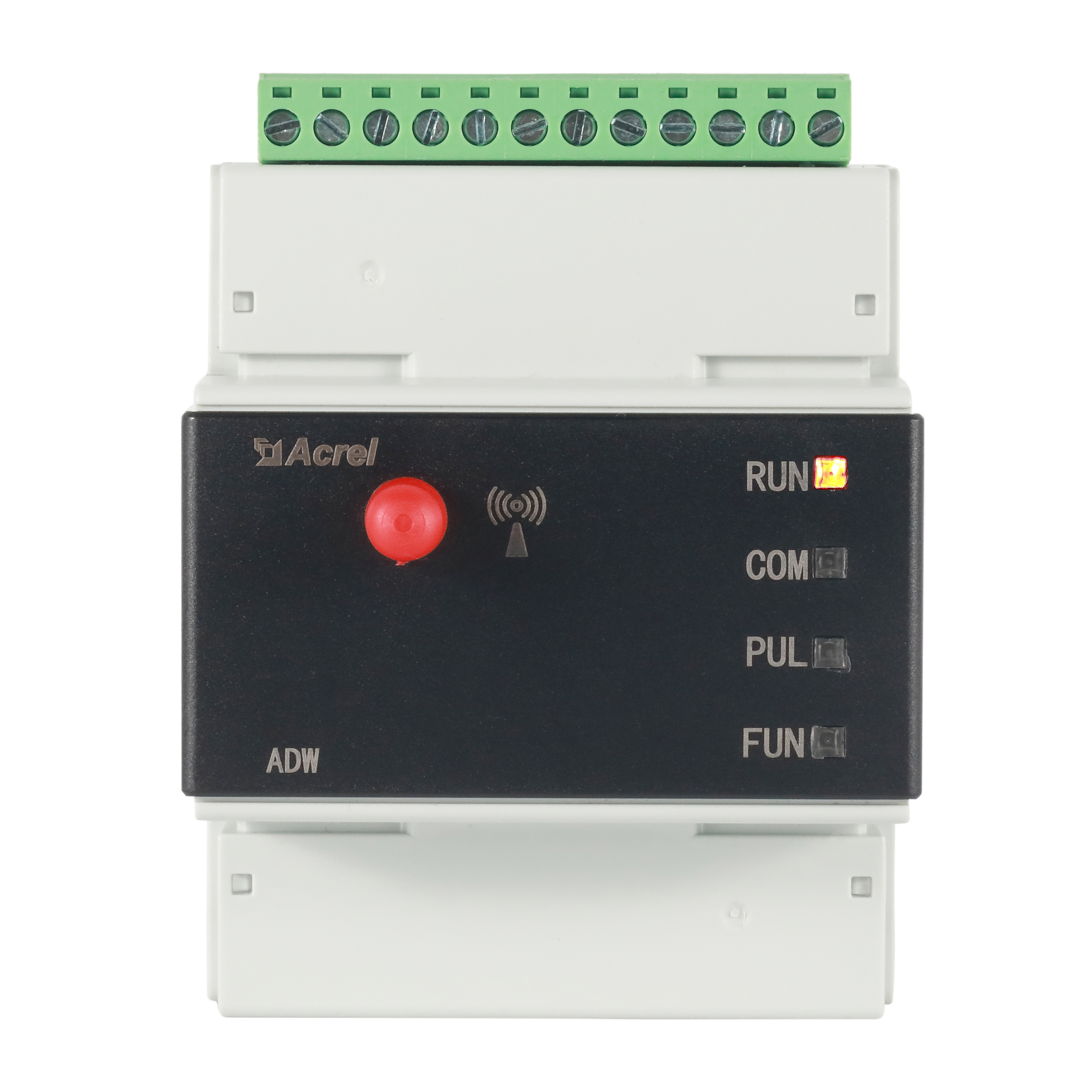

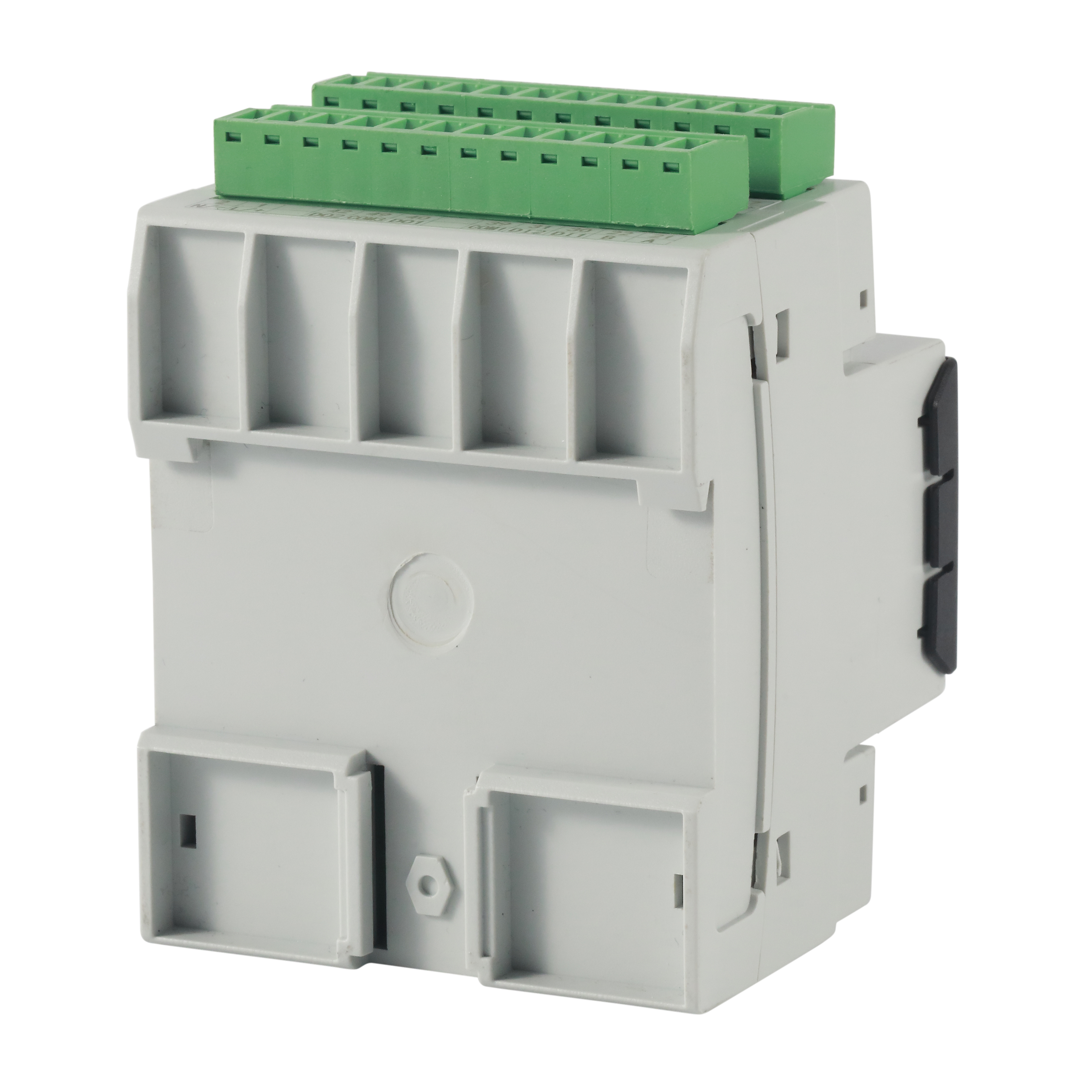

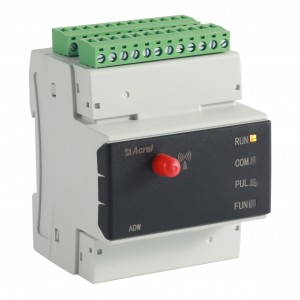

Acrel ADW220 Wireless Multi Circuits Energy Meter
Acrel ADW220 Wireless Multi Circuits Energy Meter
● LoRa communication
● Mearsure Up to 4 circuit 3 phase
● Mearsure all electric parameters
● Split core open loop CTs
● External function module, such as MK, MTL, wireless communication
● Certificate: CE

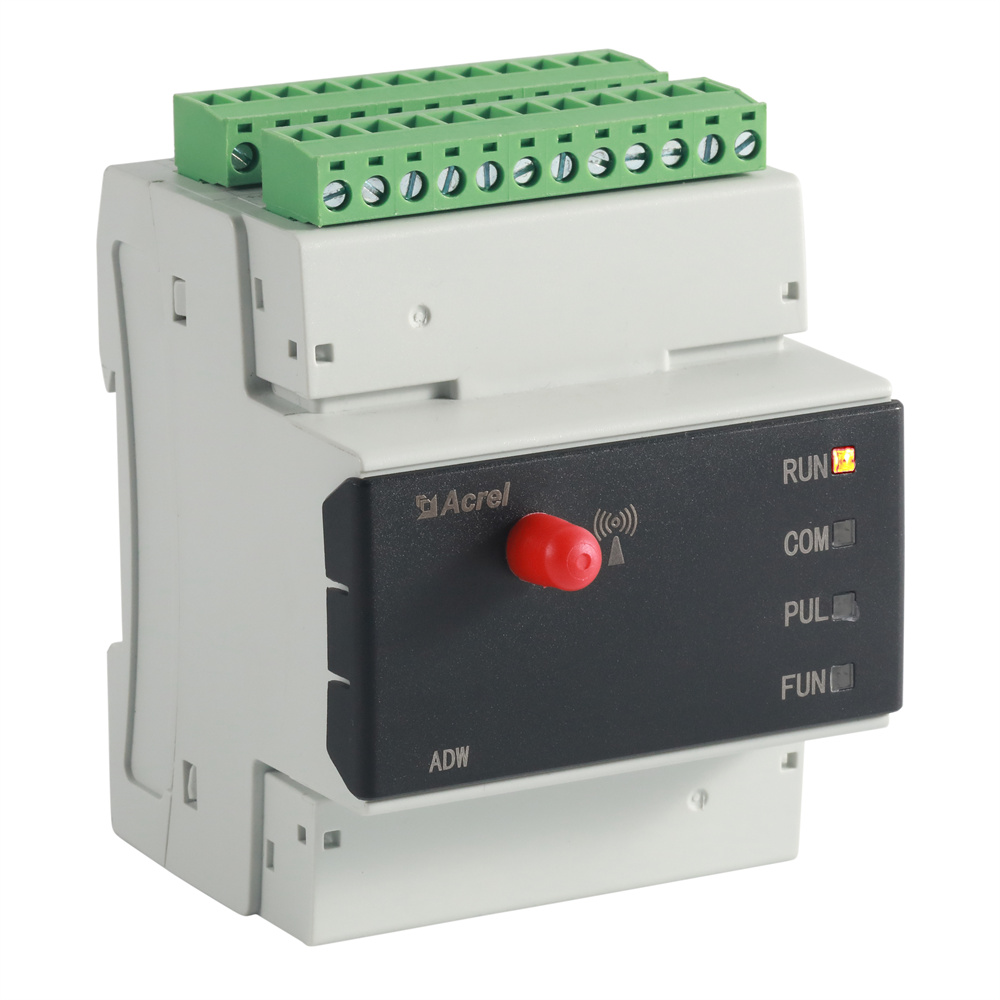

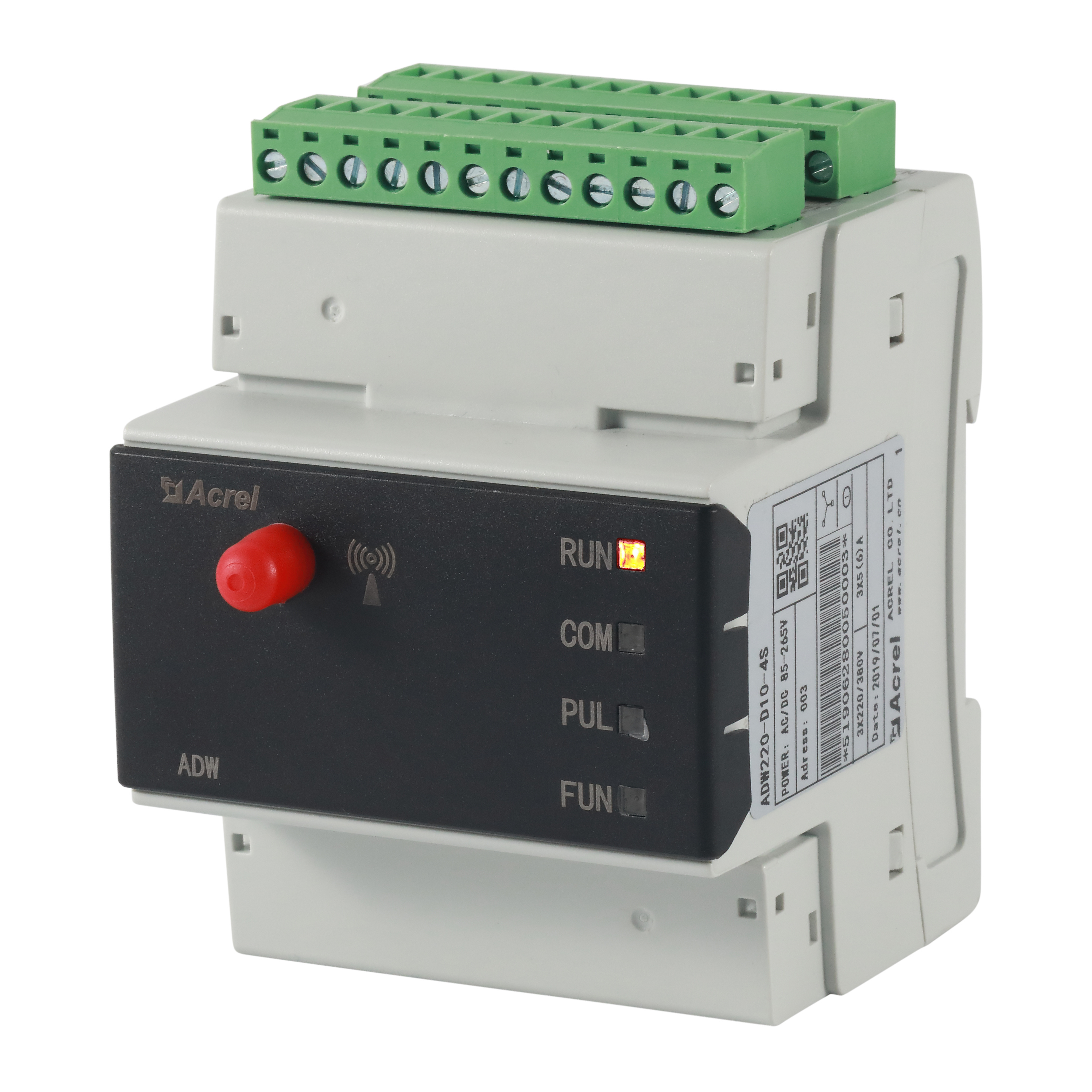

Acrel ADW220 Wireless Multi Circuits Energy Meter
General
ADW220 Wireless Multi Circuits Energy Meter is mainly used for measuring the full electric parameters of multiple three-phase circuits, which can be connected to up to four three-phase circuits with one main module. Can directly or indirectly measure voltage and current, power, power factor, phase Angle, unbalance degree, harmonics and other parameters.Optional switch 8AI4AO, temperature 12NTC, Leakage current 4L and wireless communication module.
Functions
Rated U and I
AC 3*220/380V,5A,100A
Accuracy
Active power:Class 1
Reactive power:Class 2
Frequency
Range:50~60Hz
Pulse output
Active pulse output and reactive pulse output
Consumption
<0.5VA(Single phase)
Installation:
DIN 35mm
Dimension(L*W*H):
72*97.7*36 mm
Wireless:
Transmission on 470MHz and maximum distance
in open space is 1km;2G;NB
Starting Current:
4‰Ib
Diagram of ADW220 Wireless Multi Circuits Energy Meter

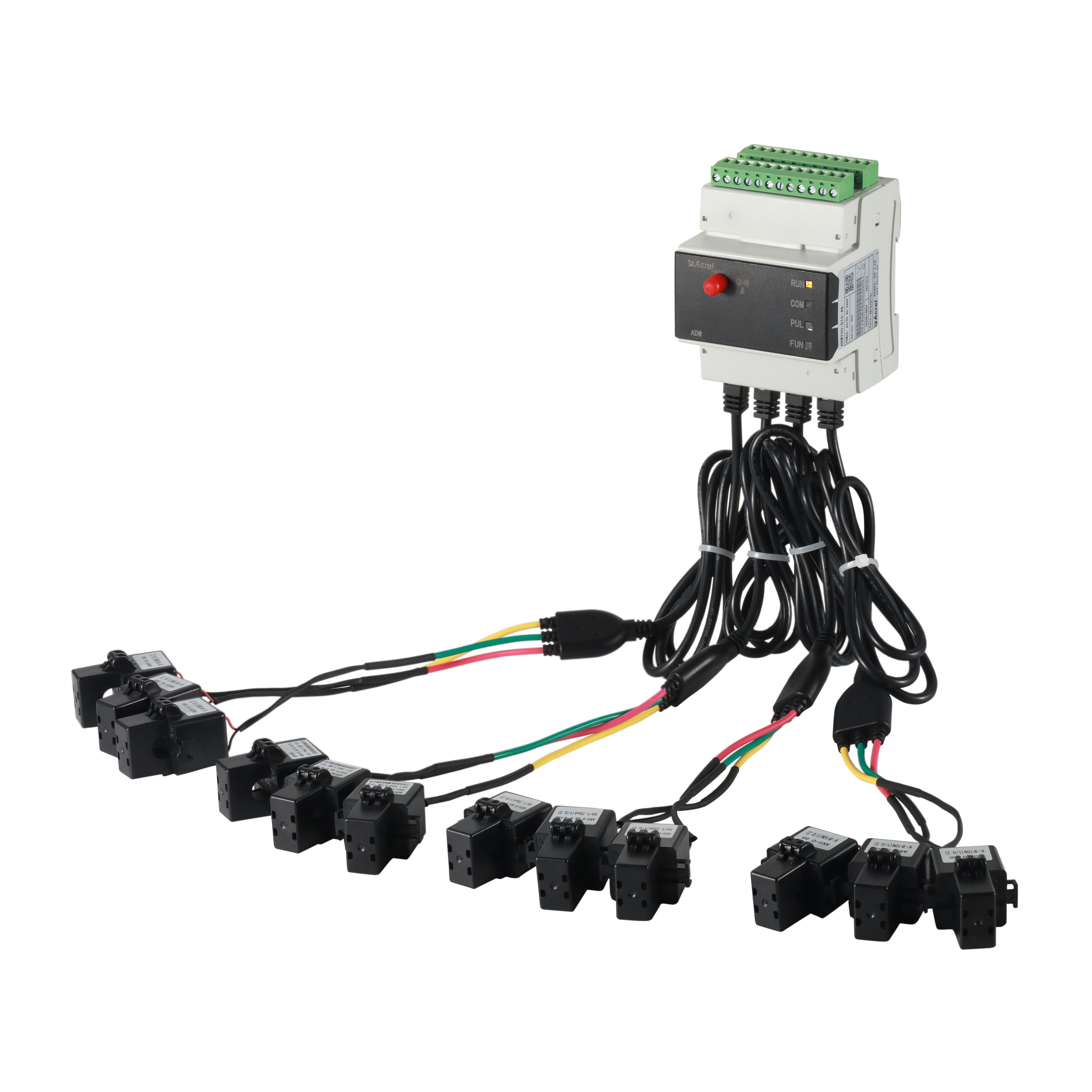

Adw2xx installation mode is rail type; Up to 4 three-phase current AKH-0.66/K- φN connections. when modules are closely arranged and assembled, length of network cable between and wireless module AWT100 is 20cm, for connection between other modules is 15cm. According to the connection sequence, the module closest to the main body is defined as module 1.
Benefits and Advantages
• Mearsure Up to 4 circuit 3 phase
• RJ45 split core ct, easy installation
• MK, MLT external function module
• Wireless Communication Module Optional
Applications
• Measurement of full electric parameters in multiple three-phase circuits
• Remote meter reading of the powerDistribution box
• Manage the electric demand of industrial and mining enterprises
• Calculate the electricity consumption of power supply system
Outline and Dimension
Main part dimension(L×W×H): 87.8*72*71.5mm
35mm Din rail installation; Tolerance: ±1mm
Module dimension(L×W×H): 87.8*36*71.5mm
35mm Din rail installation; Tolerance: ±1mm
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Package Dimension(1 PC)
170*150*130mm
|
Package Weight(1 PC)
0.245Kg |
| Packing Dimension and Weight(Large) | Package Dimension(36 PCS)
540*530*480mm
|
Package Weight(36 PCS)
10.5kG |
| Average Lead Time | Manufacturing: 3~4 days
(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code
|
9028301400 | |
| Country of Origin
|
China | |
Acrel ADW200 Wireless Multi Circuits Energy Meter
Functions
Full electric parameter measurement of N(1,2,3,4) three-phase circuit, external current transformer
Monitoring three Phase power 、total power (active、reactive、apparent)Monitoring three Phase power-factor、totalpower-factor
Support over-voltage, over-current, phase failure,DI linkage and other alarm output
Technical Parameters
| Auxiliary power | AC/DC 85～265V;consumption≤10VA | ||
| input | Frequency | 45～65Hz | |
| Voltage | AC 3×220V/380V | ||
| Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s | |||
| Power consumption:≤ 0.5VA | |||
| Current |
AC 5A 、100A 、400A 、600A;(External opening transformer) | ||
| Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s | |||
| Power consumption:≤ 0.5VA | |||
| measurement accuracy | Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2 | ||
| 2-31 times harmonic accuracy: ± 1% | |||
| Pulse output | Output mode: optocoupler pulse with open collector | ||
| Features | Communication | RS485 、Modbus-RTU;Baud rate 1200～38400 | |
| Switching | input | Dry contact input 、Built in power supply | |
| output | Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A | ||
Module Technical Parameters
| Switching Module | Power | RJ45 interface 、DC 12V 、Power consumption≤1W |
| Communication | RJ45 interface 、Modbus-RTU;(Communication with the main Part) | |
| Switching input | Dry contact input 、Built in power supply | |
| Switching output | Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A | |
| Temperature and leakage module | Power | RJ45 interface 、DC 12V 、Power consumption≤1W |
| Communication | RJ45 interface 、Modbus-RTU;(Communication with the main Part) | |
| temperature measurement | -20～100℃ | |
| Leakage measurement | 10～3000mA | |
| measurement accuracy | temperature ±2℃; Leakage1.0% |
Other Parameters
| Safety | Power frequency withstand voltage | >AC 2kV/1min |
| Insulation resistance | >100MΩ | |
| Environment | working temperature:-20℃~+60℃;Storage temperature:-40℃~+70℃;relative humidity:≤95% No condensation;Altitude:≤2500melectromagnetic compatibilityBetter than grade 3 | |
| electromagnetic compatibility | Better than grade 3 | |
