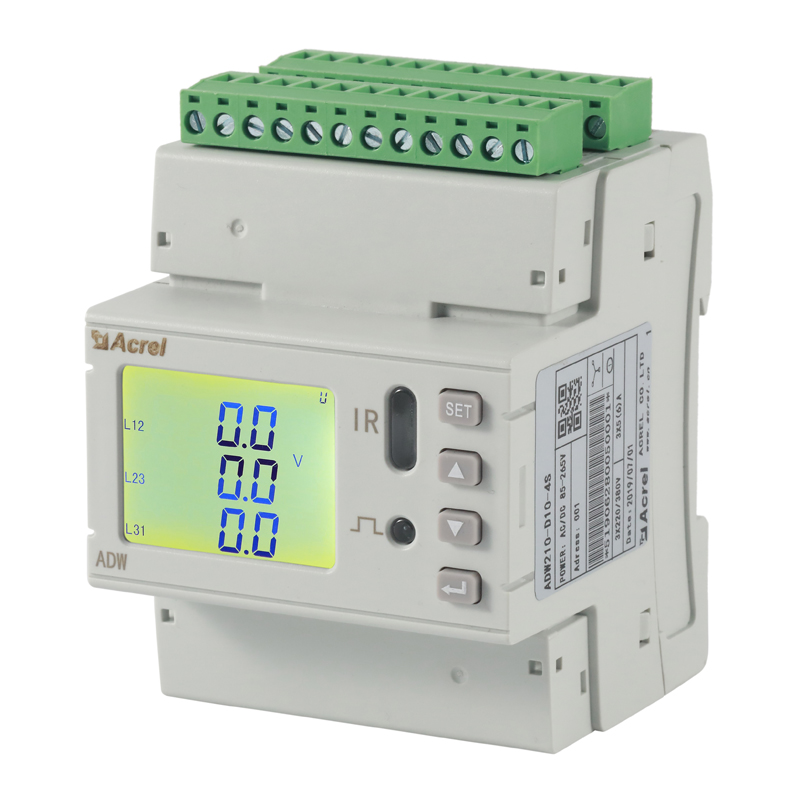

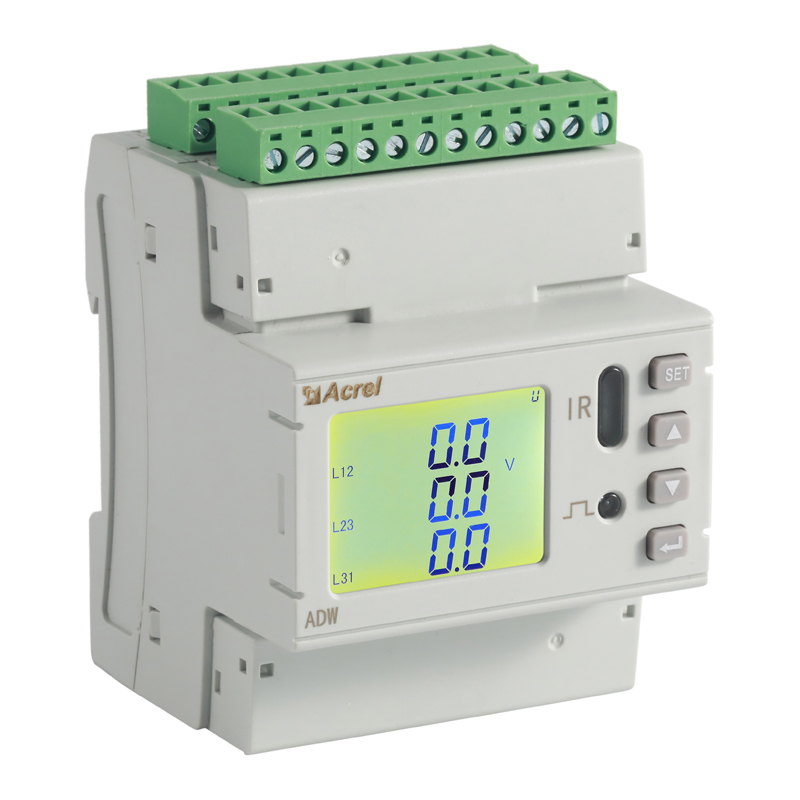

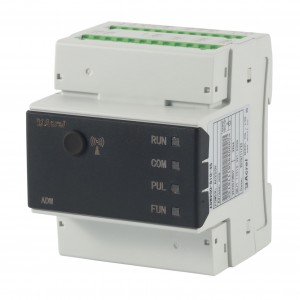

Acrel ADW210 Wireless Multi Circuits Energy Meter

Acrel ADW210 Wireless Multi Circuits Energy Meter

● Monitoring: Up to 4 circuits 3-phase or 12 circuits 1-phase.

● Measurement: kWh, kVarh, Current, Voltage, Power, 2~31^stHarmonic and etc

● Voltage Rating: 3x380V~456Vac L-L & 3×220~264Vac L-N

● Current Rating: 5A, 100A, 400A or 600A AC (with external CTs)

● Frequency: 45~65Hz

● Communication: RS485 (MODBUS-RTU)

● Extra Function: Wireless Communication (4G, WiFi, LoRa and etc); Cable Temperature Measurement; DO/DI Function

● Display: LCD

● Dimension: 87.8*72*97.7mm（L*W*H) — Main Body

● Wiring: 3-phase 4-wire & 3-phase 3-wire Connection

● Installation: 35mm DIN Rail

● Standard&Certificate: CE; LVD

Send email to us Product Manual

Product Detail

Technical Parameters

Certificate

Product Tags

ADW2XX Series Debugging Software

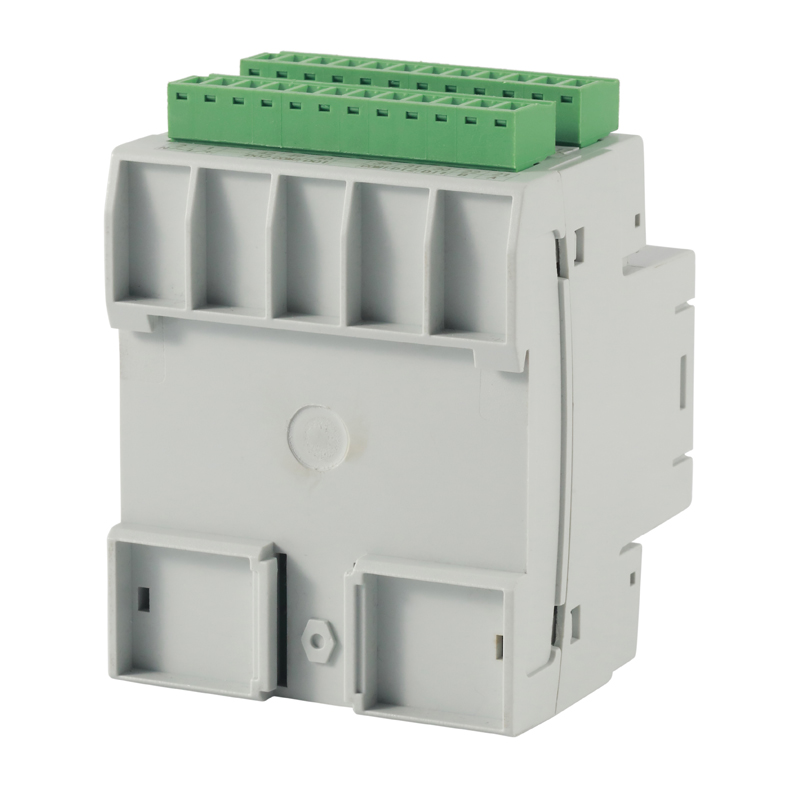

Acrel ADW210 Wireless Multi Circuits Energy Meter

General

Acrel ADW210 Wireless Multi Circuits Energy Meter is mainly used for measuring the full electric parameters of multiple three-phase circuits, which can be connected to up to four three-phase circuits with one main module.Can directly or indirectly measure voltage and current, power, power factor, phase Angle, unbalance degree, harmonics and other parameters.Optional switch 8AI4AO, temperature 12NTC, Leakage current 4L and wireless communication module.

Functions

Rated U and I

AC 3*220/380V,5A,100A

Accuracy

Active power:Class 1
Reactive power:Class 2

Frequency

Range:50~60Hz

Pulse output

Active pulse output and reactive pulse output

Consumption

<0.5VA(Single phase)

Installation:

DIN 35mm

Dimension(L*W*H):

72*97.7*36 mm

Wireless:

Transmission on 470MHz and maximum distance

in open space is 1km;2G;NB

Starting Current:

4‰Ib

ADW210 Wireless Multi Circuits Energy Meter - 6

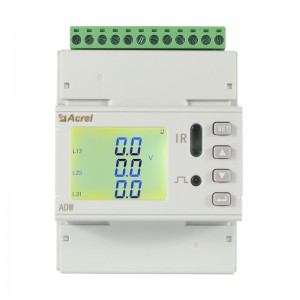

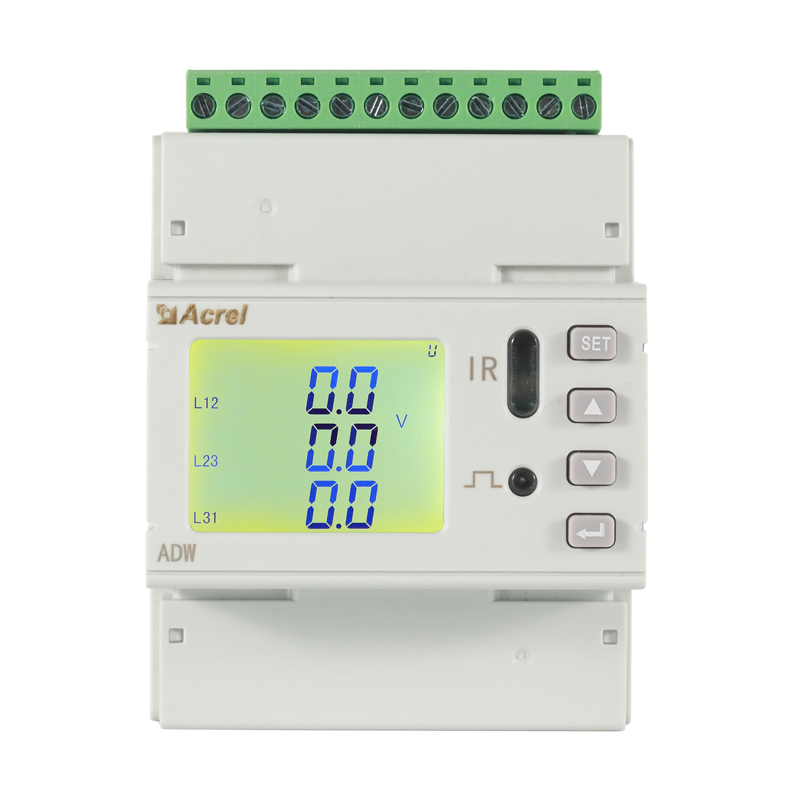

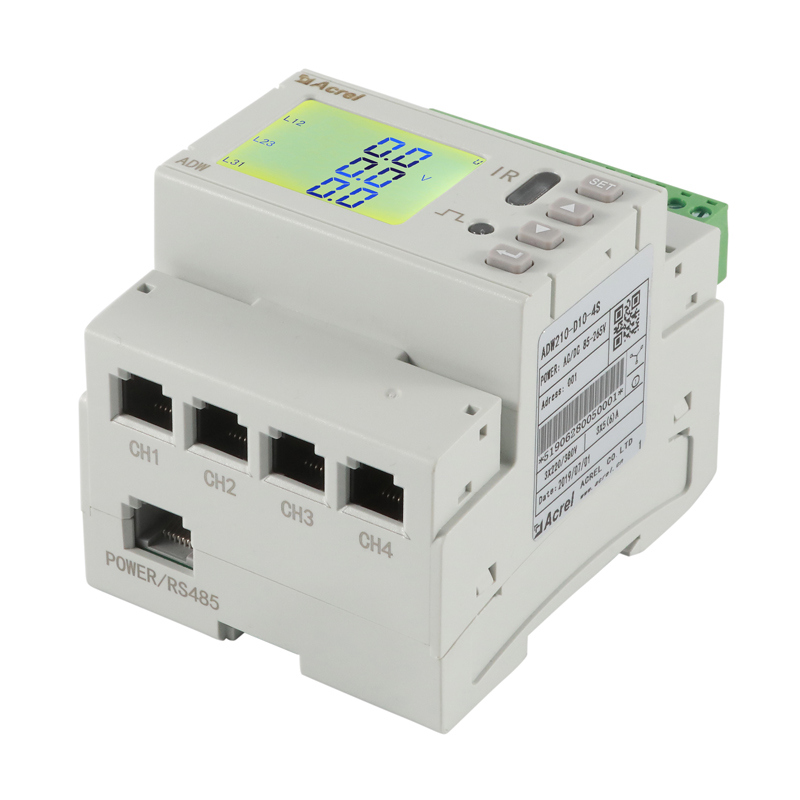

Front Panel

Features

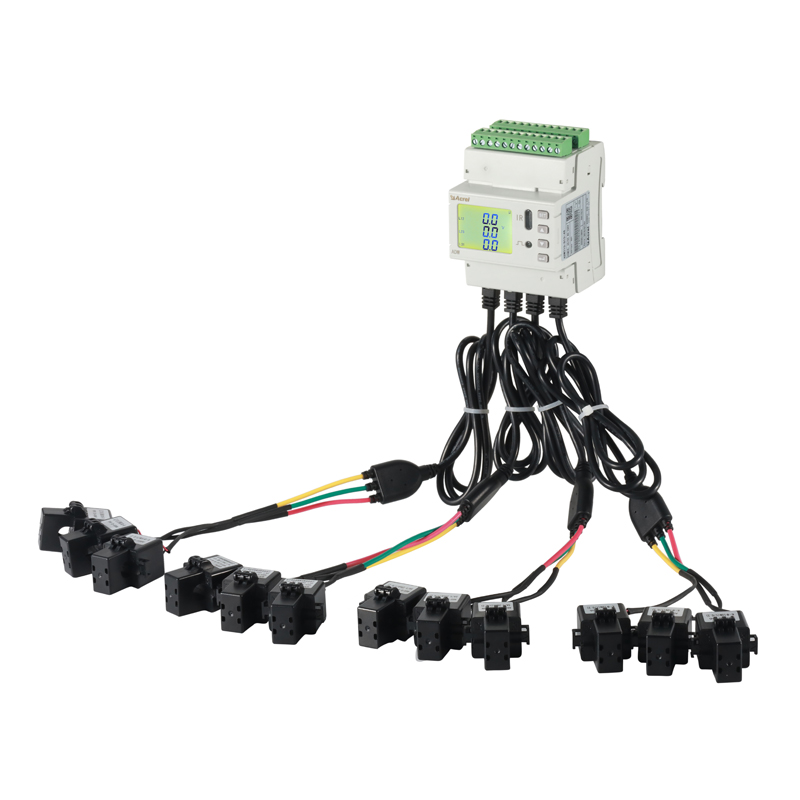

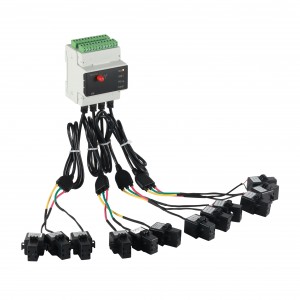

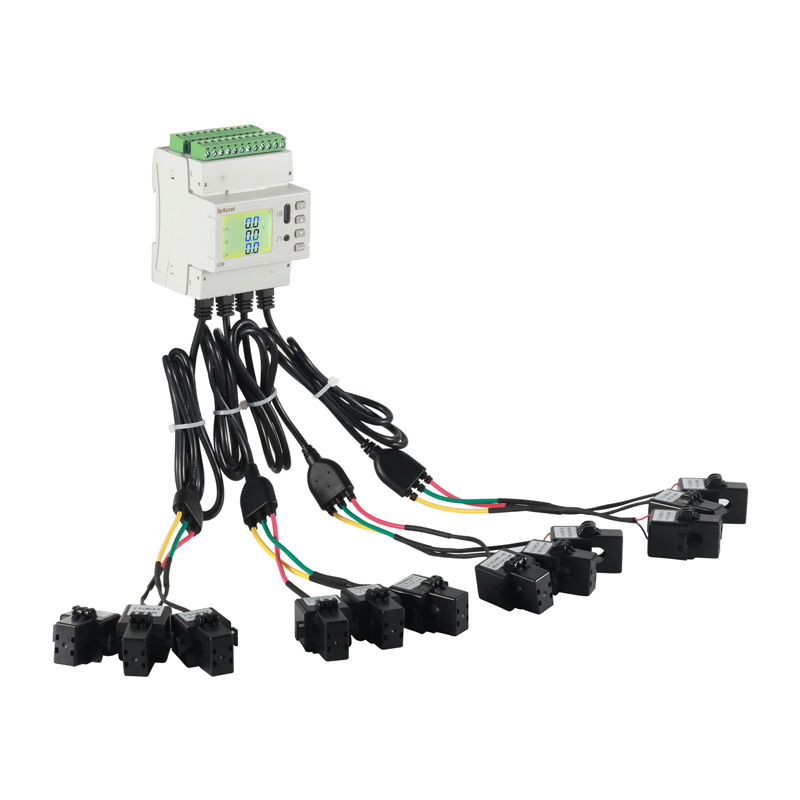

Multi-circuits Monitoring

● Monitor up to 4 circuits 3-phase or 12 circuits 1-phase

● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or

600A/100mA

● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface

Expanded Communication Module --- AWT100

● 4G (Global general module)

● WiFi

● LoRaWAN

● LoRa

● NB-IoT

Cable Temperature&Residual Current Measurement Module --- MTL

● Temperature Measurement:-20℃~+100℃

● Residual Current Measurement:10~3000 mA

● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)

DO/DI Switch Extra Function Module --- MK

● 12 channel DI (Digital Input)

● 4 channel DO (Digital Output)

PIN Overview

Wiring

ADW210 3-phase 4-wire Power Wiring

ADW210 3-phase 3-wire Power Wiring Diagram

Wiring_of_ADW210_Wireless_Multi-Circuit_Energy_Meter

ADW210 3-phase 4-wire Wiring of ADW210 monitoring 4 3-phase Circuits

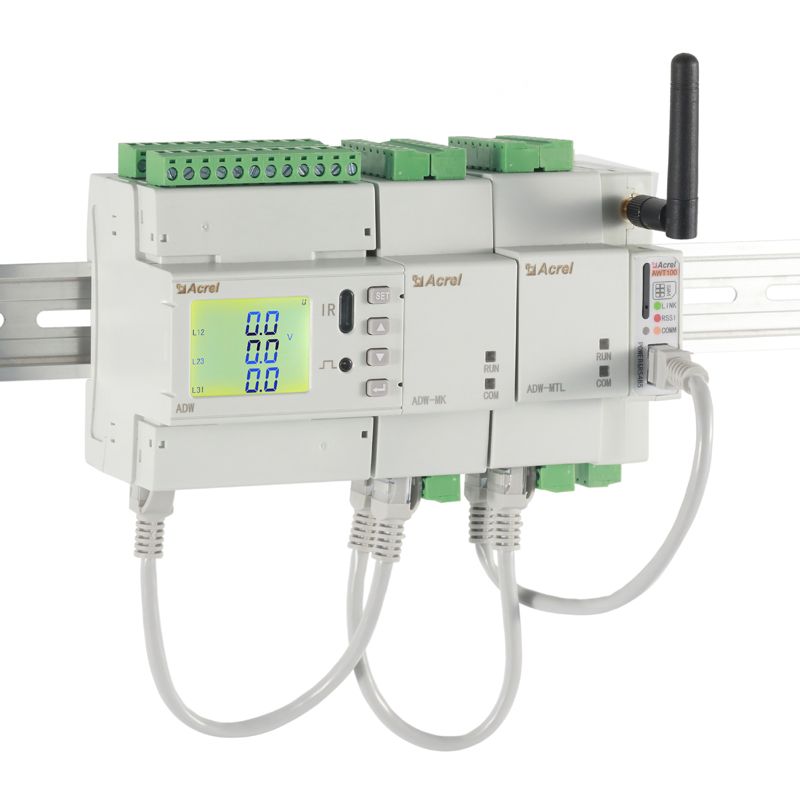

ADW210 Wiring between ADW210 Main Body and MTL&MK Extra Function Module through RJ45 Interface

ADW210 Wiring between 1 ADW210 Main Body and 1 AWT100 Communication Module

(Attention: In the connection between 1 ADW210 and 1 AWT100 through RJ45 interface, we don't need Auxiliary Power Supply for AWT100)

ADW210 Wiring between more than 1 ADW210 Main Bodies and 1 AWT100 Communication Module

(Attention: In the connection between more than 1 ADW210 and 1 AWT100 through RS485 Serial Ports, we need DC24 or DC12V Auxiliary Power Supply for AWT100)

Network

Installation

Application

• Measurement of full electric parameters in multiple three-phase circuits

• Remote meter reading of the powerDistribution box

• Manage the electric demand of industrial and mining enterprises

• Calculate the electricity consumption of power supply system

Benefits and Advantages

• Mearsure Up to 4 circuit 3 phase

• RJ45 split core ct, easy installation

• MK, MLT external function module

• Wireless Communication Module Optional

Outline and Dimension

Main part dimension(L×W×H): 87.8*72*71.5mm

35mm Din rail installation; Tolerance: ±1mm

Module dimension(L×W×H): 87.8*36*71.5mm

35mm Din rail installation; Tolerance: ±1mm

Packaging

Packaging Overview(Minimum)
Packing Dimension and Weight(Minimum)	Package Dimension(1 PC) 170150130mm	Package Weight(1 PC) 0.245Kg
Packing Dimension and Weight(Large)	Package Dimension(36 PCS) 540530480mm	Package Weight(36 PCS) 10.5kG
Average Lead Time	Manufacturing: 3~4 days (If paired with system need extra 1~2 days for adjustment)	Shippment: 8~9 days(World Wide Shipment)
Product HS Code	9028301400
Country of Origin	China

Previous: Acrel DJSF1352-RN Din Rail DC Energy Meter

Next: Acrel ADW310 Single-phase Wireless IoT Energy Meter

Acrel ADW210 Wireless Multi Circuits Energy Meter

Naming Rule

Functions

Full electric parameter measurement of N(1,2,3,4) three-phase circuit, external current transformer

Monitoring three Phase Voltage/Current、Zero sequence Current、Frequency

Monitoring three Phase power 、total power (active、reactive、apparent)Monitoring three Phase power-factor、totalpower-factor

Monitoring Voltage/Current Phase Angle、Voltage/Current Degree of unbalance

Monitoring Voltage、Current total Harmonic and 2-31 Fractional harmonics

Record of voltage、current and power extremum of current month and last month

Maximum Current、Maximum power demand and real time Current、real time power demand

200 event records,Record the action of DIDO

Support over-voltage, over-current, phase failure,DI linkage and other alarm output

4 time zones 14 Periods rate setting

Four quadrant electric energy,12-month multi rate electric energy

31 days four quadrant and multi rate electric energy freezing,Positive and negative energy metering

2 channel Switching inputs、2 channel Switching outputs、RS485、Active pulse output(Switchable corresponding circuit)

The following auxiliary functions can be extended through its RJ45 interface:

(MK)

12 channel Switching inputs+4 channel Switching outputs

(MTL)

12 channel external NTC temperature +4 channel residual current measurement (leakage current)

(AWT100-2G)

2G Wireless Communication

(AWT100-4G)

4G Wireless Communication

(AWT100-NB)

NB-IoT Wireless Communication

(AWT100-LoRa)

LoRa Wireless Communication

(AWT100-LW)

LoRaWAN Wireless Communication

Technical Parameters

Auxiliary power			AC/DC 85～265V;consumption≤10VA
input	Frequency		45～65Hz
	Voltage		AC 3×220V/380V
			Overload: 1.2 times of rated value (continuous); 2 times of rated value / 1s
			Power consumption:≤ 0.5VA
	Current		AC 5A 、100A 、400A 、600A;(External opening transformer)
			Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s
			Power consumption:≤ 0.5VA
measurement accuracy			Frequency 0.05Hz, voltage and current 0.5 level, active electric energy level 1, reactive electric energy level 2
			2-31 times harmonic accuracy: ± 1%
	Pulse output		Output mode: optocoupler pulse with open collector
Features	Communication		RS485 、Modbus-RTU;Baud rate 1200～38400
	Switching	input	Dry contact input 、Built in power supply
		output	Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A

Module Technical Parameters

Switching Module	Power	RJ45 interface 、DC 12V 、Power consumption≤1W
	Communication	RJ45 interface 、Modbus-RTU;(Communication with the main Part)
	Switching input	Dry contact input 、Built in power supply
	Switching output	Output mode:Relay normally open contact output; contact rating:AC 250V/3A DC 30V/3A
Temperature and leakage module	Power	RJ45 interface 、DC 12V 、Power consumption≤1W
	Communication	RJ45 interface 、Modbus-RTU;(Communication with the main Part)
	temperature measurement	-20～100℃
	Leakage measurement	10～3000mA
	measurement accuracy	temperature ±2℃; Leakage1.0%

Other Parameters

Safety	Power frequency withstand voltage	>AC 2kV/1min
	Insulation resistance	>100MΩ
Environment		working temperature:-20℃~+60℃;Storage temperature:-40℃~+70℃;relative humidity:≤95% No condensation;Altitude:≤2500melectromagnetic compatibilityBetter than grade 3
electromagnetic compatibility		Better than grade 3
