General
Acrel ADL3000-E is a smart meter mainly designed for power statistics and management needs of power systems, industrial and mining enterprises, and public facilities. It integrates all power parameter measurement and comprehensive power measurement and assessment management and provides various types of power data statistics in the last December.
It has the detection of 31st sub-harmonic and total harmonic content, with switch input and switch output, which can realize "remote signal" and "remote control" functions, and has alarm output. With RS485 communication interface, MODBUS-RTU is optional. The power meter can be widely used in various control systems, SCADA systems and energy management systems.
Functions
Communciation: RS485(Modbus-RTU)
Rated U and I: AC 3*100V,3*380V,3*57.7/100V,3*220/380V; 3*1(6)A,3*10(80)A
Accuracy: kWh: Class0.5S; kVrah: Class 2
Frequency: 45~65Hz
Display: 8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)
Pulse output: Pulse output kWh/kvarh
Consumption: <10VA(Single phase)
Installation: DIN 35mm
Dimension(L*W*H): 126.5*88*69.5 mm
Installation: DIN 35mm
Clock: ≤0.5s/d
Starting Current: Direct connect:0.004lb
Connect via CT: 0.001ln

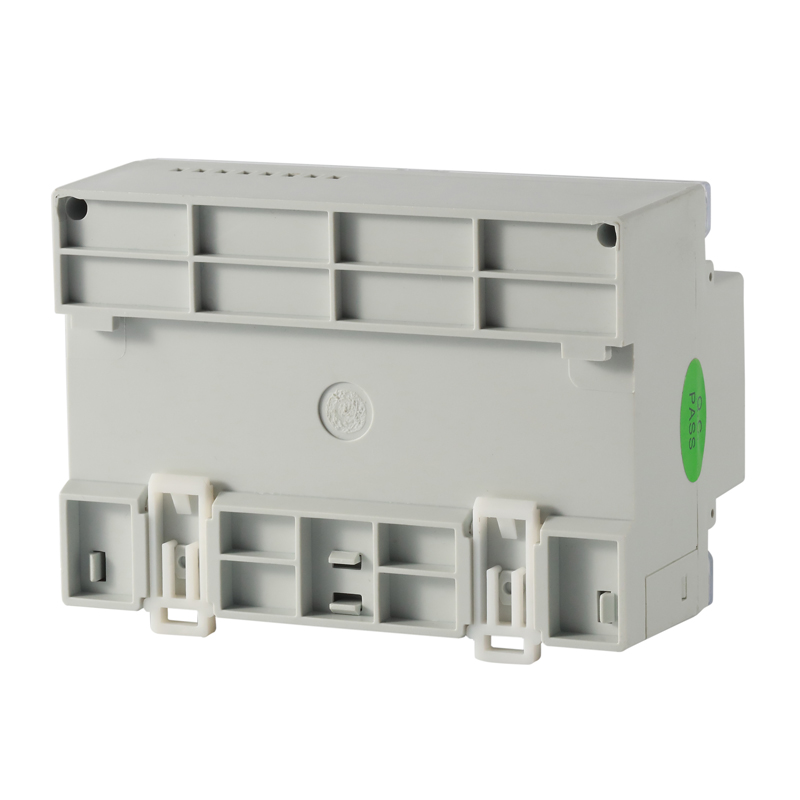

Front Panel

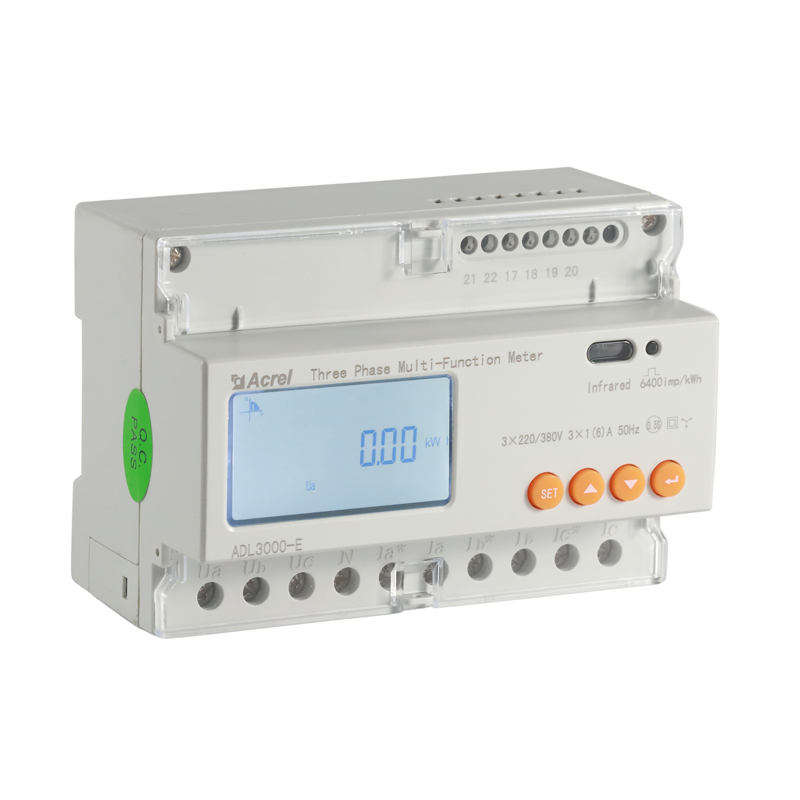

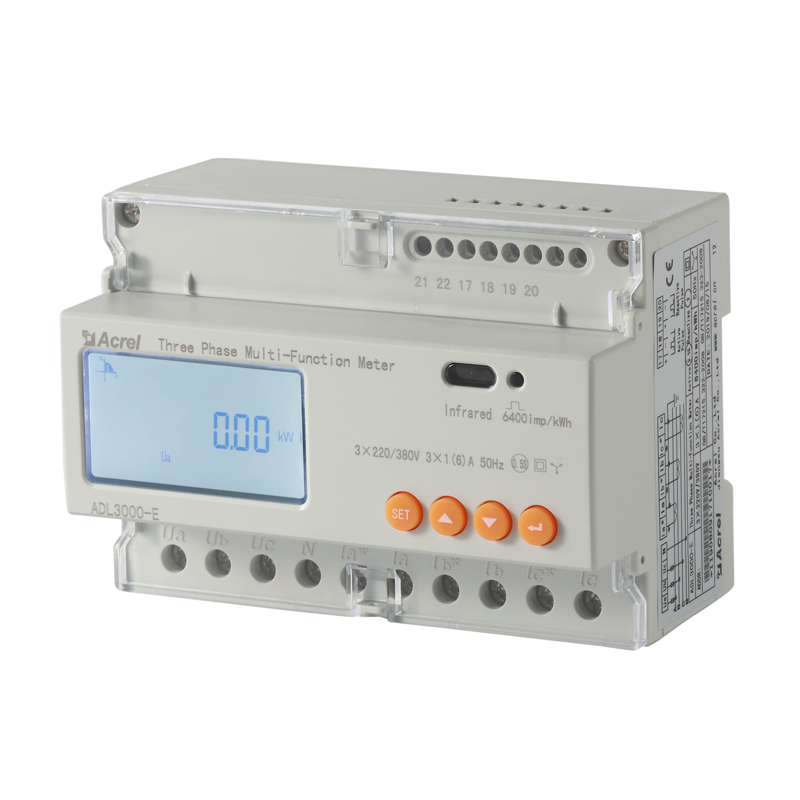

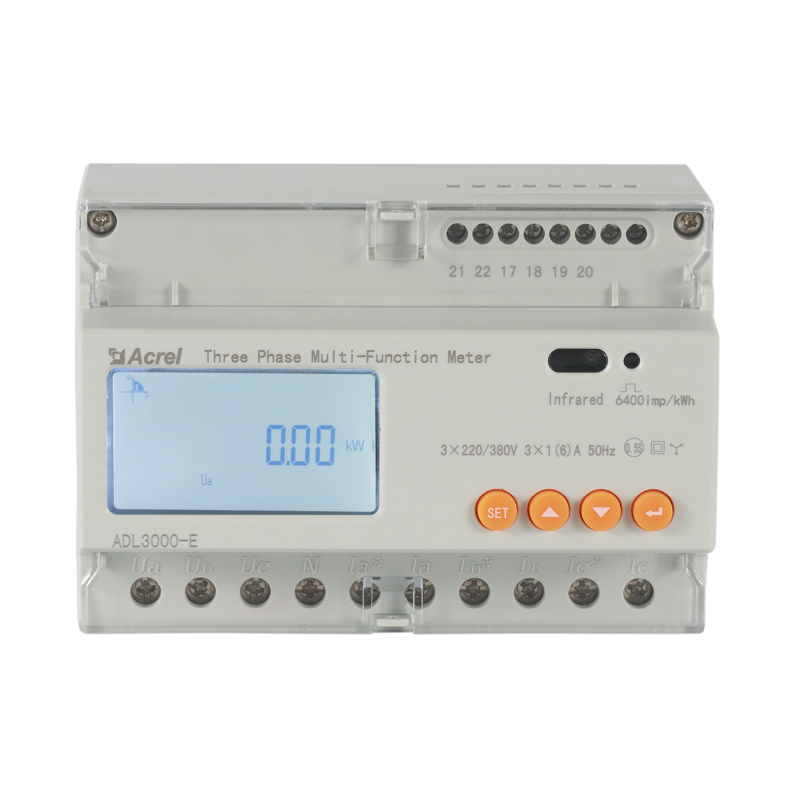

Diagram of ADL3000-E Three Phase Multi-function Din Rail Energy Meter

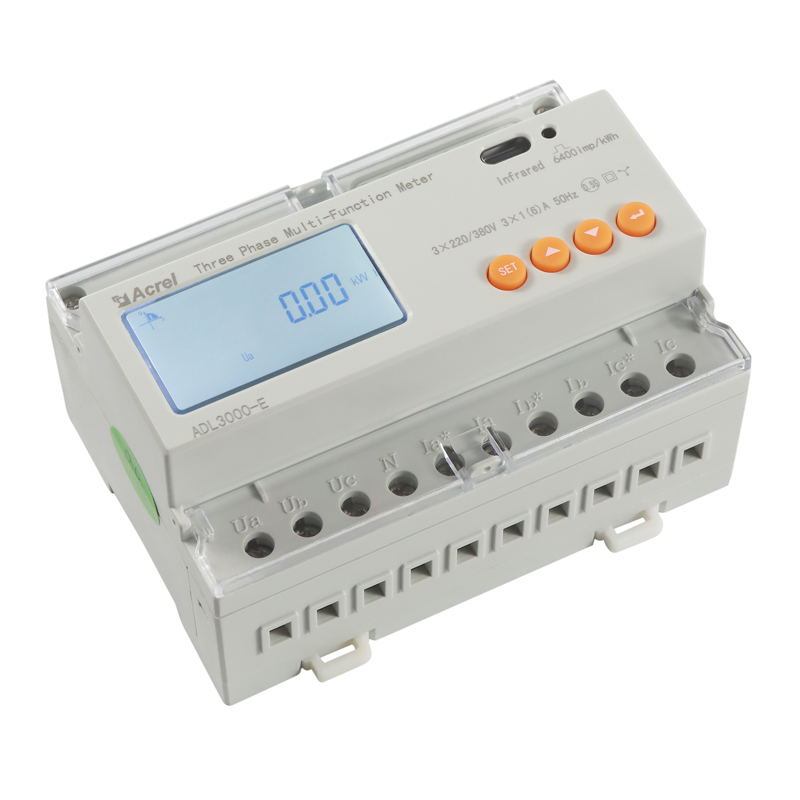

ADL3000-E Three Phase Multifunction Energy Meter is divided into direct current access and secondary current access. The wiring torque for direct access should be less than 2N·m, and the wiring torque for ct access should be less than 4N·m. The overall size of the meter is L*W*H: 126*88*70mm, the front panel has the corresponding silkscreen, including voltage input line, current input line, auxiliary function port number, LOGO, LCD display, buttons, etc.
Features
Diverse Electricity Parameters Measurement
● Harmonic (2~31st voltage¤t)---Optional
● F (Frequency)
● U (3-phase Voltage)
● I (3-phase Current)
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time
2 Channel RS485 Communication
● Protocol: MODBUS-RTU
● 1 channel RS485 or 2 channel RS485 both optional
3-channel Temperature Measuring
● Thermistor: NTC temperature sensor
● Measuring Range: -40℃~+125℃
DO/DI Switch
● 1 channel DO
● 1 channel DI
HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display
Infrared Communication for Remote Meter Reading
● Built-in infrared communication
● Easy Remote Meter Reading
● Optional Connection Methods
● Direct Connection with Meter
● First Connection via CT.
Optional Connection Methods
● Direct Connection with Meter
● First Connection via CT.
Wiring ADL3000-E Three Phase Multi-function Din Rail Energy Meter
Network
Installation
Benefits and Advantages
• 0.5S High precision, CE certification
• Full electrical parameters measurement
• Record last 48 months or last 90 days history energy
• Switching input/output and Temperature measurement
Applications
• Calculate the electricity consumption in power supply system
• Industrial and mining enterprises's kwh meausrenment
• Itemized measurement of electric energy in government agencies
• Measurement of electrical energy in large public buildings
Outline and Dimension
Dimension of ADL3000-E (Current Input via Direct Connect)
Dimension of ADL3000-E (Current Input via CTs)
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pc Product Dimension: 170mm*150mm*130mm
|
Total N.W. (1 pcs) 0.254 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension:540mm*530mm*480mm
|
Total N.W. (36 pcs) 11.836 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shipment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
ADL3000-E Three Phase Multi-function Din Rail Energy Meter FAQs
Yes, press the key to set the meter to three-phase three-wire mode.
Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on-site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter). There are CTs available on site to facilitate with No stitch removal.
3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Yes, only need PLC to support RS485 interface, Modbus RTU, or DL/T645 protocol.
Acrel ADL3000-E Three-phase AC Multi-function Din Rail Energy Meter
Functions
| Functions | Function description |
Function provide
|
|
Measurement of kWh
|
Active kWh (positive and negative)
|
■ |
|
Reactive kWh (positive and negative)
|
■ | |
|
A, B, C phase positive active kWh
|
■ | |
| Measurement of electrical parameters |
U、IP、Q、S、PF、F
|
■ |
|
Measurement of harmonic
|
2~31st Voltage and current harmonic
|
■ |
|
LCD Display
|
8 bits section LCD display, background light
|
■ |
|
Key programming
|
4 keys to communication and set parameters
|
■ |
|
Pulse output
|
Active pulse output
|
■ |
|
Reactive pulse output
|
□Note 1
|
|
|
Clock pulse output
|
□Note 1
|
|
|
Multi-tariff and functions
|
Active switch input
|
□Note 2
|
| Switch output |
□Note 2
|
|
|
Adapt 4 time zones, 4 time interval lists, 14 time interval by day and 4 tariff rates
|
□ | |
|
Max demanded kWh and time happened
|
□ | |
|
Frozen data on last 48 months, last 90 days
|
□ | |
|
Date, time
|
□ | |
|
Communication
|
Infrared communication
|
■ |
|
The first communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
|
□ | |
|
The second communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
|
□Note 2
|
|
|
Temperature measurement
|
Support 3 outlay NTC temperature
|
□Note 3
|
Technical Parameters
| Specification |
3 phase 3 wires, 3 phase 4 wires
|
|
|
Voltage
|
Reference voltage
|
3×100V、 3×380V、3×57.7/100V、 3×220/380V
|
|
Consumption
|
<10VA(Single phase)
|
|
|
Impedance
|
>2MΩ
|
|
|
Accuracy class
|
Error±0.2%
|
|
|
Current
|
Input current
|
3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3×10(100)A(Outlay transformer)
|
|
Consumption
|
<1VA(Single phase rated current) | |
| Accuracy class |
Error±0.2%
|
|
| Power |
Active, reactive, apparent power, error±0.5℅
|
|
| Frequency |
45～65Hz， Error±0.2%
|
|
| Temperature |
-40℃～99℃
|
|
| Energy |
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
|
|
| Clock |
≤0.5s/d
|
|
| Energy pulse output |
1 active optocoupler output, 1 reactive optocoupler output
|
|
| Switching output |
1 Switching output, Maximum allowed voltage: DC/AC 220V
|
|
|
Switching input
|
1 optocoupler input,Maximum allowed voltage: DC/AC 220V
|
|
|
Width of pulse
|
80±20ms
|
|
|
Pulse constant
|
6400imp/kWh,400imp/kWh(Correspond with the basic current)
|
|
|
Interface and communication
|
RS485：Modbus RTU
|
|
| Range of communication address |
Modbus RTU:1~ 247
|
|
|
Baud rate
|
1200bps~19200bps
|
|
|
Relative temperature
|
-25℃~+55℃
|
|
|
Relative humidity
|
≤95℅(No condensation)
|
|
