General
Acrel ADL100-ET single phase energy meter is mainly used to measure single phase active energy of low-voltage network, and can measure voltage, current, power and other electric energy, with infrared communication function, and optional RS485 communication function, convenient for users to use electricity monitoring, collection and management.
It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of sub-item electric energy of different regions and different loads.
Functions
Accuracy: kWh:Class1
Frequency: 50Hz
Power Supply(self supply): 220Vac,154~264VAC
Pulse output: Pulse output kWh
Consumption: <10VA(Single phase)
Dimension(L*W*H): 36*80*70mm
Installation: DIN 35mm
Clock: ≤0.5s/d
Starting Current: 0.004lb

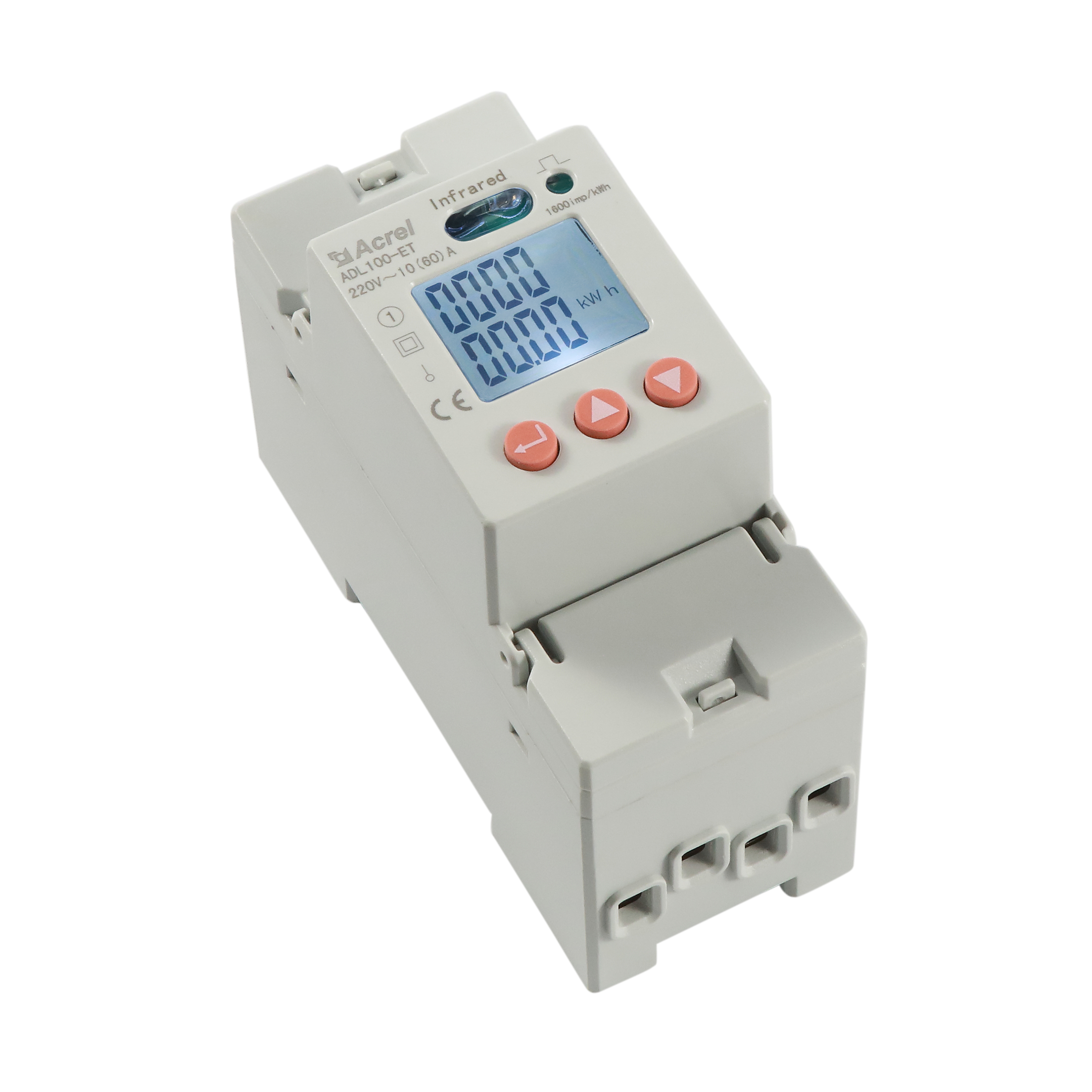

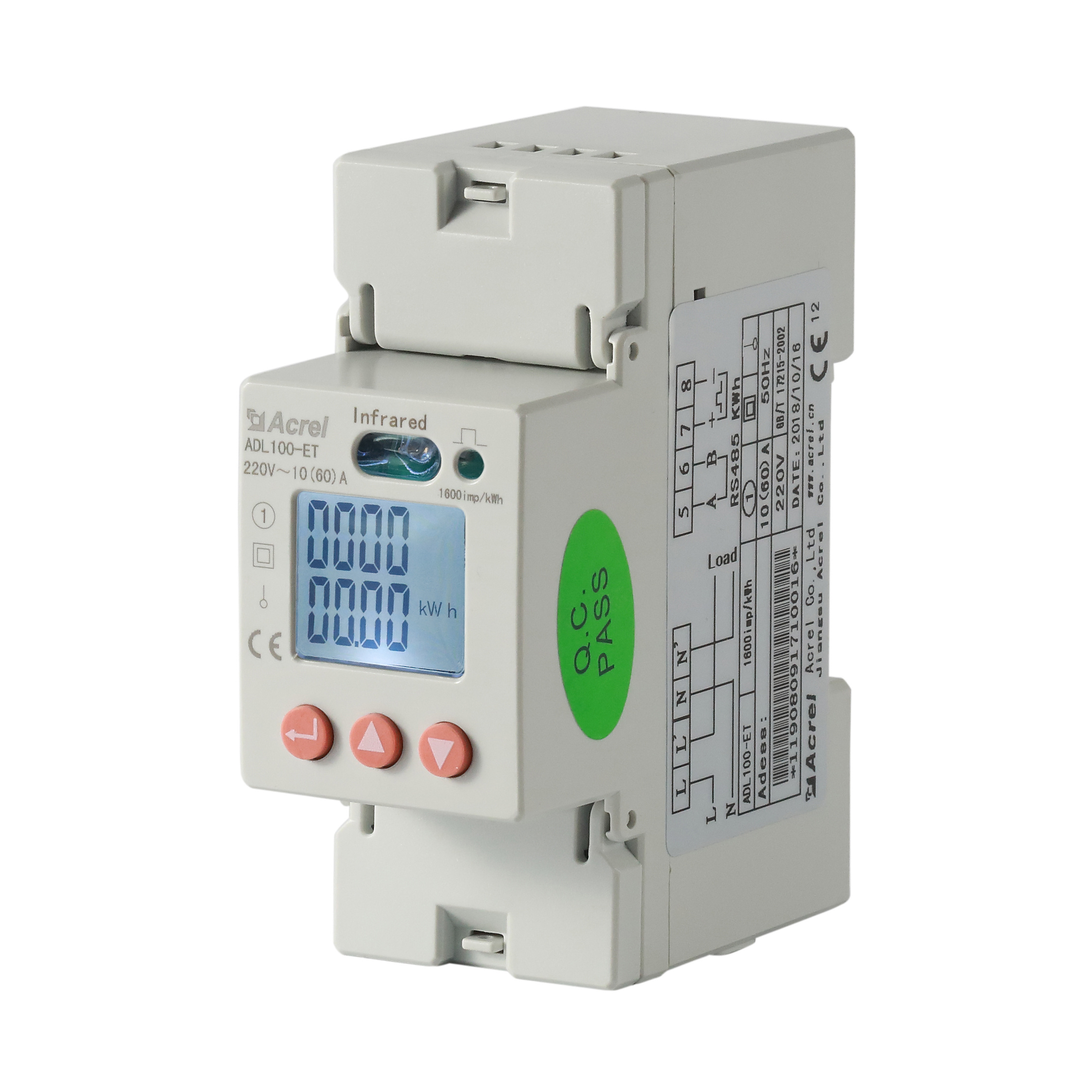

Front Panel

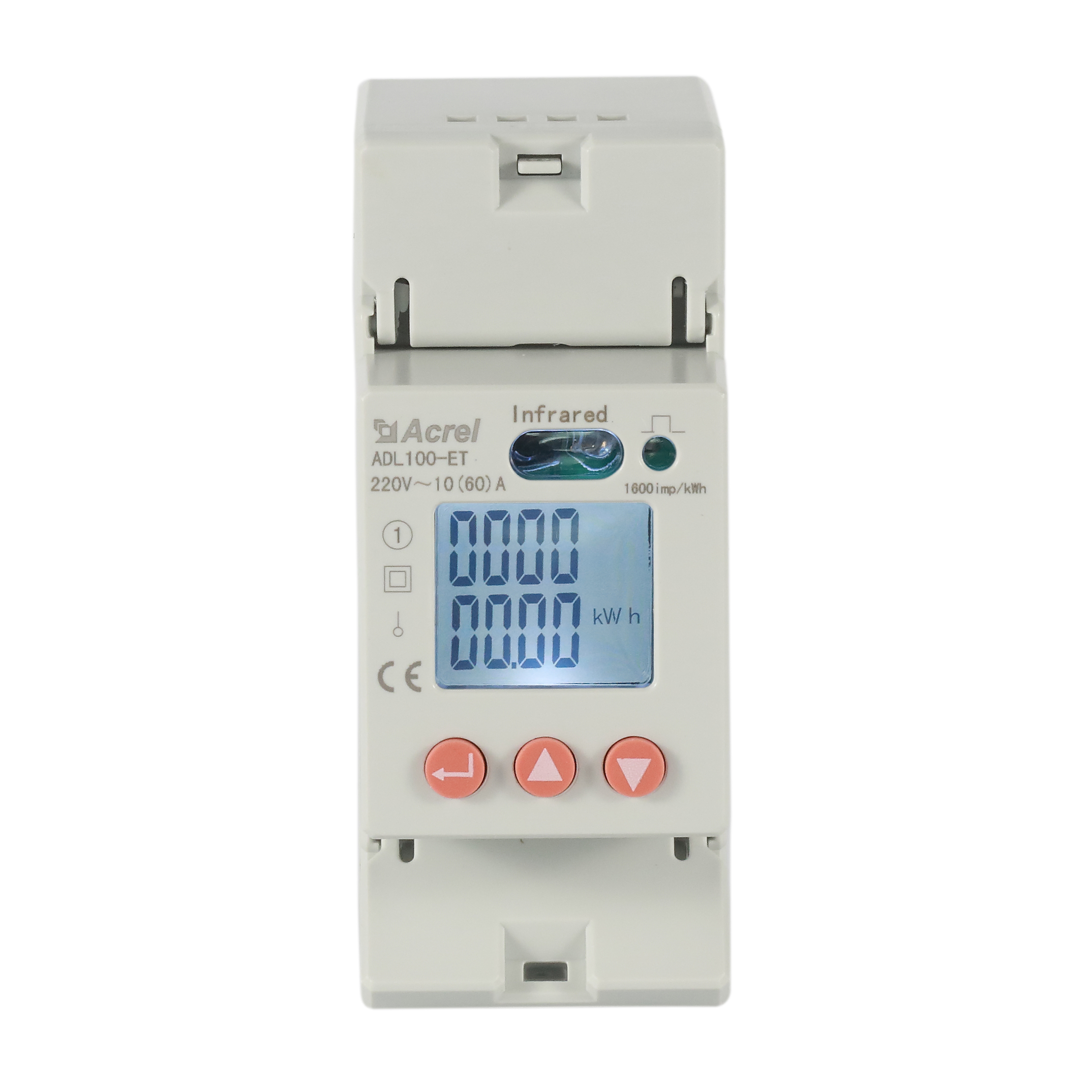

Diagram of ADL100-ET Single Phase Din Rail Energy Meter
ADL100-ET single phase energy meter is divided into direct current access and secondary current access. When used the direct connecting method, please pay attention to the direction of input and output while wiring and screw tightly, prevent the meter from the abnormal work. The overall size of the meter is L*W*H: 88*36*70mm, the front panel has the corresponding silkscreen, including Enter-wire, Out-wire, auxiliary function port number, LOGO, LCD display, buttons, etc.
Features
Small Compact Size
● Dimension (L*W*H): 36mm*88mm*70mm
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display

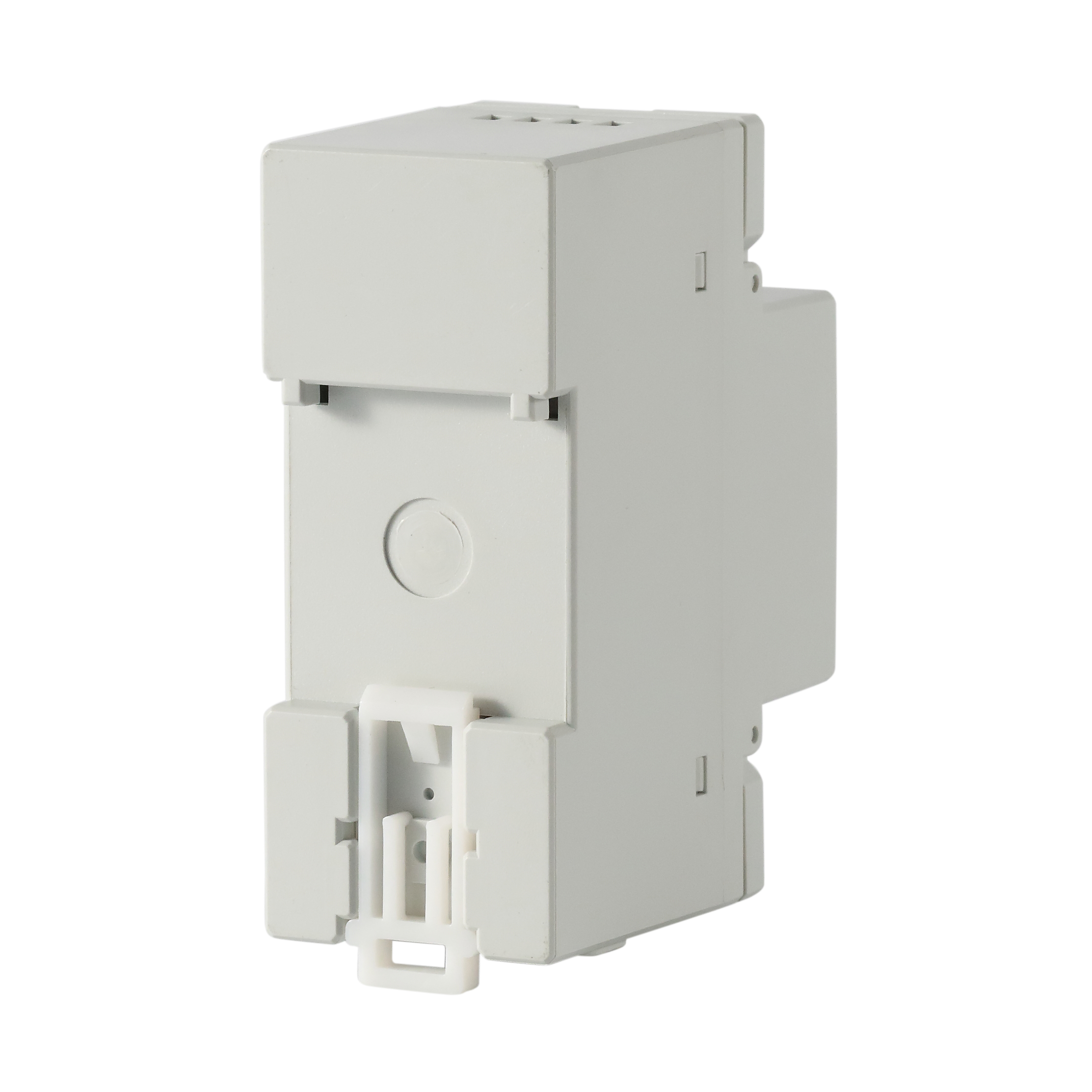

DIN Rail Installation
● 35mm standard DIN rail
LCD Display
● 8 digits
Wiring
Network
Installation
Benefits and Advantages
• High precision, CE certification
• Small size, light weight, easy to install
• Diverse functions,full electric parameter measurement
• Can realize wireless communication with gateway module
Applications
• Installed in the distribution room and distribution cabinet
• Used for measuring electrical energy in a domestic meter box
• Measurement of electrical energy in school buildings
• Electricity measurement of shopping malls, supermarkets, and other buildings
Outline and Dimension

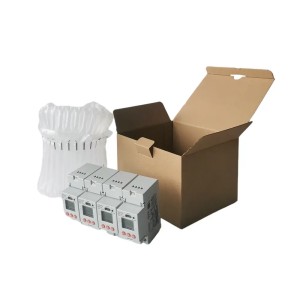

Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 4 pcs Products Dimension: 170mm*150mm*130mm
|
Total N.W. (0.034KG * 4pcs) 0.136 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension: 480mm*460mm*200mm
|
Total N.W. (36 pcs) 2.304 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
Acrel ADL100-ET Single-phase Din Rail Energy Meter
Functions
| Functions | Description |
Function provide
|
| Measurement of kWh | Single-phase active kWh (positive and negative) | ■ |
| Measurement of electrical parameters |
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
|
■ |
| LCD Display | 8 bits section LCD display | ■ |
| Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol | ■ |
| Pulse output | Active energy pulse output | ■ |
| Multi-tariff | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | □F |
| Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | □C |
| Infrared communication | ■ |
Technical Parameters
| Electrical Performance | ||
| Input voltage | Reference voltage | AC220V |
| Reference frequency | 50Hz | |
| Power consumption | <10VA | |
| Input current | Basic current | 10A,20A(External transformer) |
| Maximum current | 60A,100A(External transformer) | |
| Starting current | 4‰Ib | |
| Consumption | <4VA (Maximum current) | |
| Measurement performance | Accuracy of measuring | 1 Class |
| Range of measuring | 000000.00~999999.99kWh | |
| Clock accuracy | Error≤0.5s/d | |
| Active pulse | Pulse width | 80±20ms |
| Pulse constant | 1600imp/kWh ， 800imp/kWH(corresponding to basic current)，LED | |
| Communication | Interface | RS485(A+、B-) |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU | |
| Mechanical performance | ||
| Outline (Length × Width × Height) |
88mm×36mm×70mm
|
|
|
Work environment
|
||
|
Range of temperature
|
Working temperature
|
-25℃~55℃
|
|
Storing temperature
|
-40℃~70℃
|
|
|
Relative humidity
|
≤95%(No condensation)
|
|
| Altitude |
<2000m
|
|
