General
Acrel ADL10-E single phase energy meter is a new generation of miniature energy meter launched by Acrel Electric. Set measurement, metering, LCD display, communication in one, with high stability, low power consumption, power failure data storage, and other advantages.
It can be flexibly installed in the distribution box, to achieve different regions and different loads of the item of electricity measurement.
Functions
Accuracy
kWh:Class1,Kvarh Class 2
Frequency
50Hz
Power Supply(self supply)
AC 220V(L-N),range:154~264VAC
Consumption
<10VA(Single phase)
Dimension(L*W*H)
18*88*70 mm
Installation
DIN 35mm
Starting Current
0.004lb

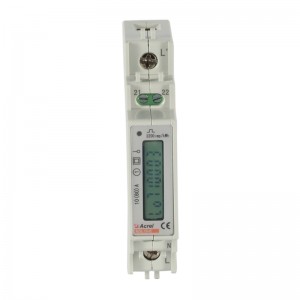

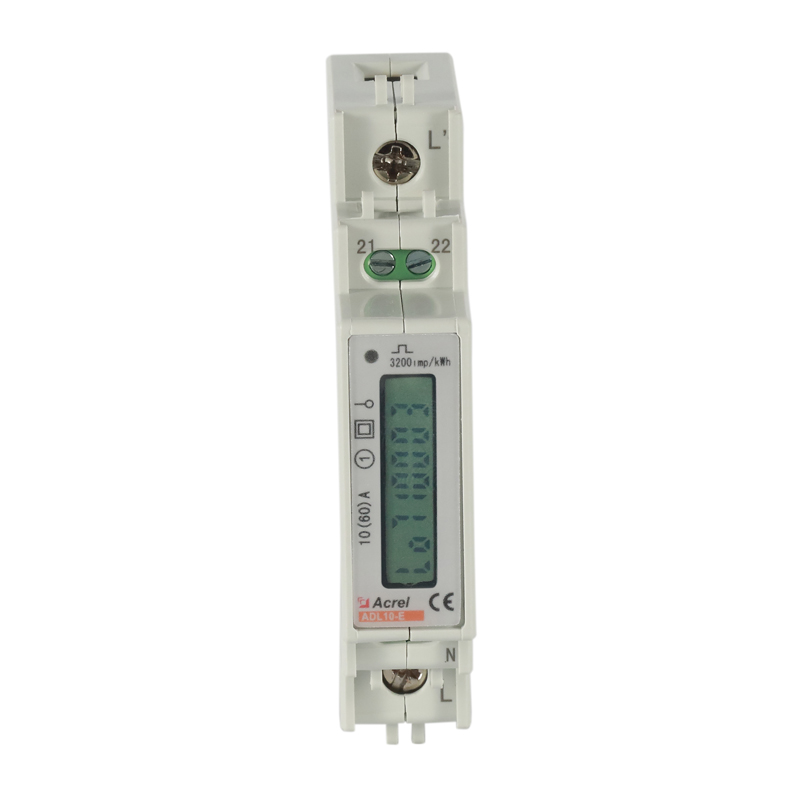

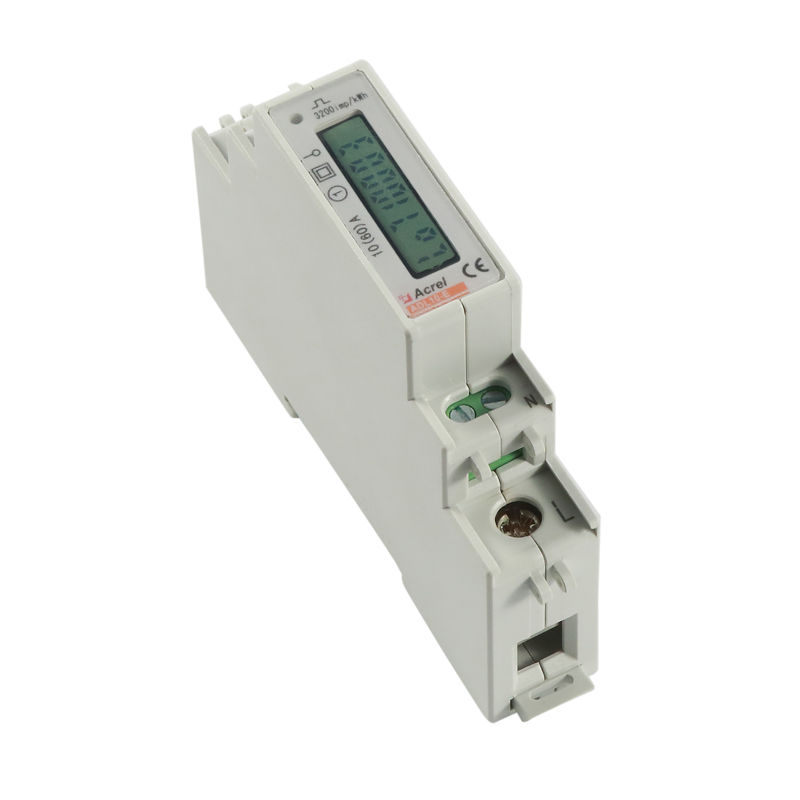

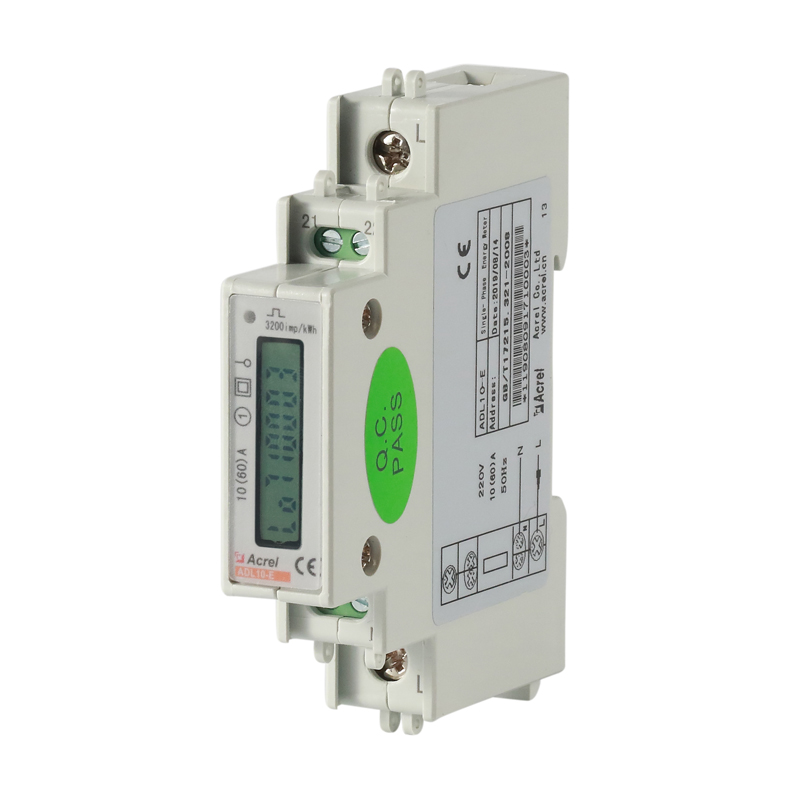

Front Panel of ADL10E Single Phase Din Rail Energy Meter
Diagram of ADL10E Single Phase Din Rail Energy Meter
ADL10 single phase energy meter used the direct connecting method. Please pay attention to the direction of input and output while wiring and screw tightly (torque less than 12Nm) prevent the meter from the abnormal work.The meter shows total energy first while turning on and then shows voltage, current and power, etc. in turn.
Features
Small Compact Size
● Dimension (L*W*H): 18mm*88mm*70mm
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

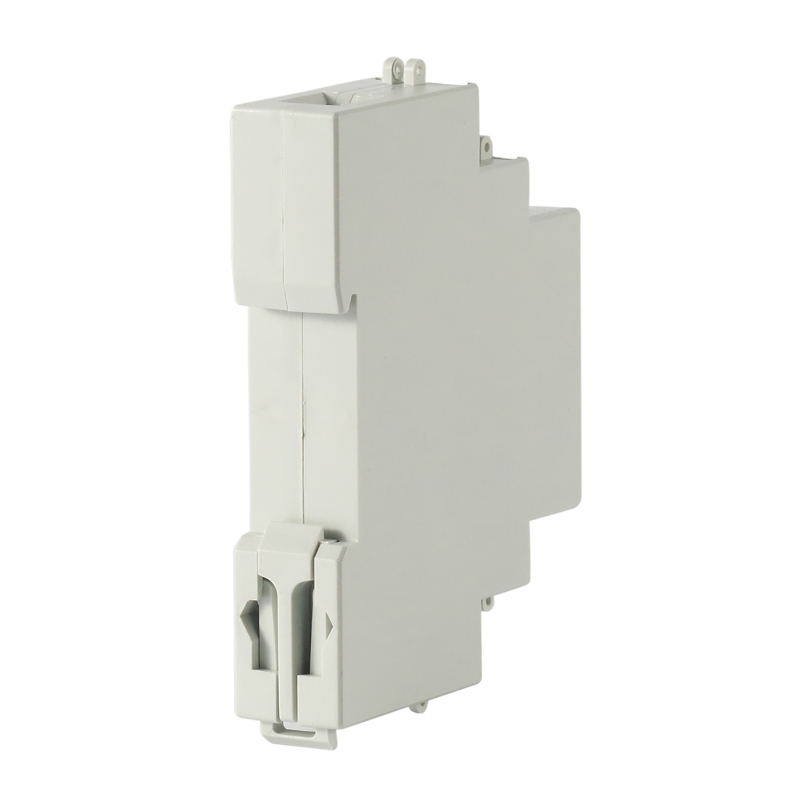

DIN Rail Installation
● 35mm standard DIN rail
LCD Display
● 8 digits
Network
Benefits and Advantages
• High precision, CE certification
• Small size, light weight, easy to install
• Parameter measurement with low power consumption
• Can realize wireless communication with gateway module
Applications
• Installed in the distribution room and distribution cabinet
• Used for measuring electrical energy in a domestic meter box
• Measurement of electrical energy in school buildings
• Electricity measurement of shopping malls, supermarkets, and other buildings

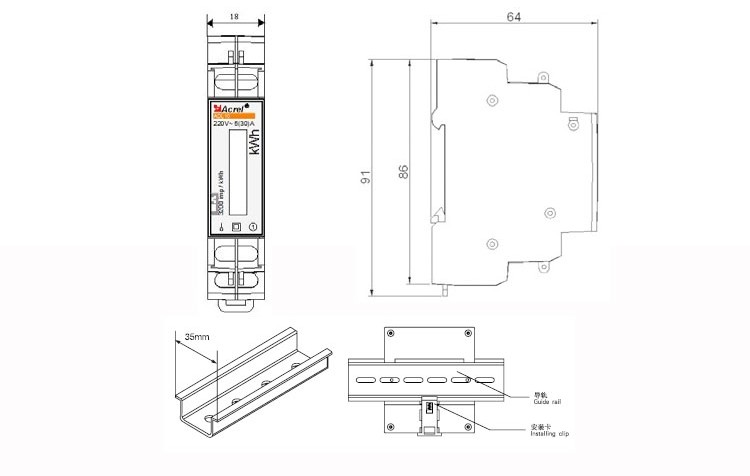

Outline and Dimension
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 4 pcs Products Dimension:
170mm*150mm*130mm
|
Total N.W. (0.083KG * 4pcs) 0.332 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs ProductsDimension:
480mm*460mm*200mm
|
Total N.W. (36 pcs) 4.069 KG |
| Average Lead Time | Manufacturing: 3~4 days
(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code
|
9028301400 | |
| Country of Origin
|
China | |
Acrel ADL10-E Single-phase Din Rail Energy Meter
Functions
| Functions | Description |
Function provide
|
| Measurement of kWh | Single-phase active kWh (positive and negative) | ■ |
| Measurement of electrical parameters |
Voltage, Current, Active power, Reactive power,
Apparent power, Power factor and Frequency
|
■ |
| LCD Display | 8 bits section LCD display | ■ |
| Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | □C |
Technical Parameters
| Electrical Performance | ||
| Input voltage | Reference voltage | AC220V |
| Reference frequency | 50Hz | |
| Power consumption | <10VA | |
| Input current | Basic current | 10A |
| Maximum current | 60A | |
| Starting current | 0.004Ib | |
| Consumption | <4VA (Maximum current) | |
| Measurement performance | Accuracy of measuring | 1 Class |
| Range of measuring | 000000.00~999999.99kWh | |
| Communication | Interface | RS485(A+、B-) |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU | |
| Mechanical performance | ||
| Outline (Length × Width × Height) |
18mm×96 mm×70mm
|
|
|
Work environment
|
||
|
Range of temperature
|
Working temperature
|
-25℃~55℃
|
|
Storing temperature
|
-40℃~70℃
|
|
|
Relative humidity
|
≤95%(No condensation)
|
|
| Altitude |
<2000m
|
|
