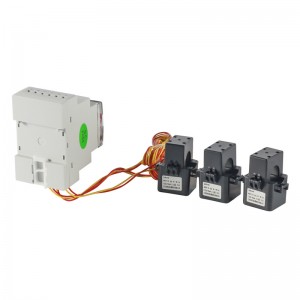

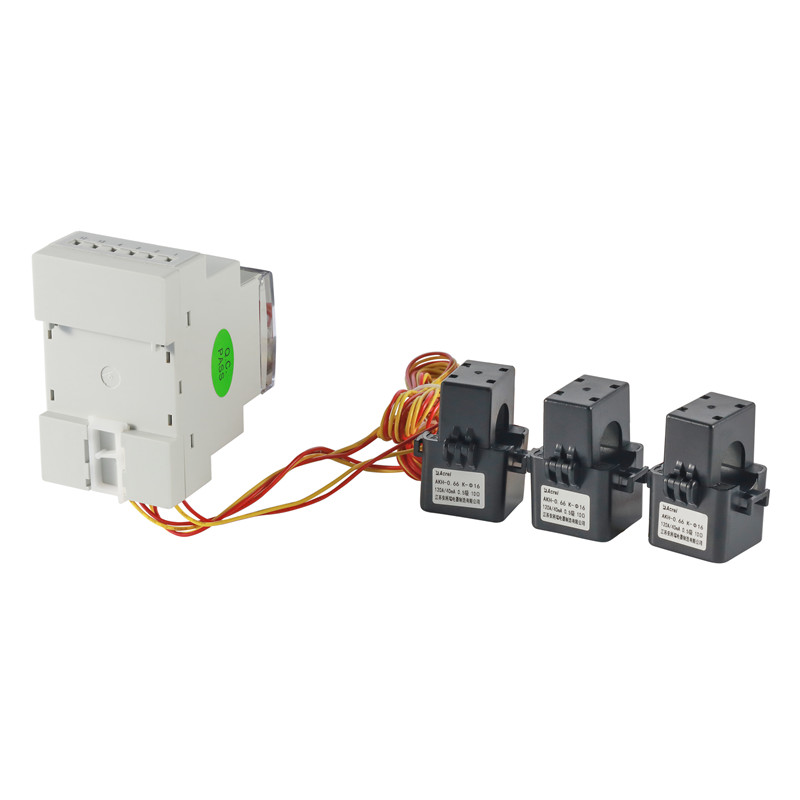

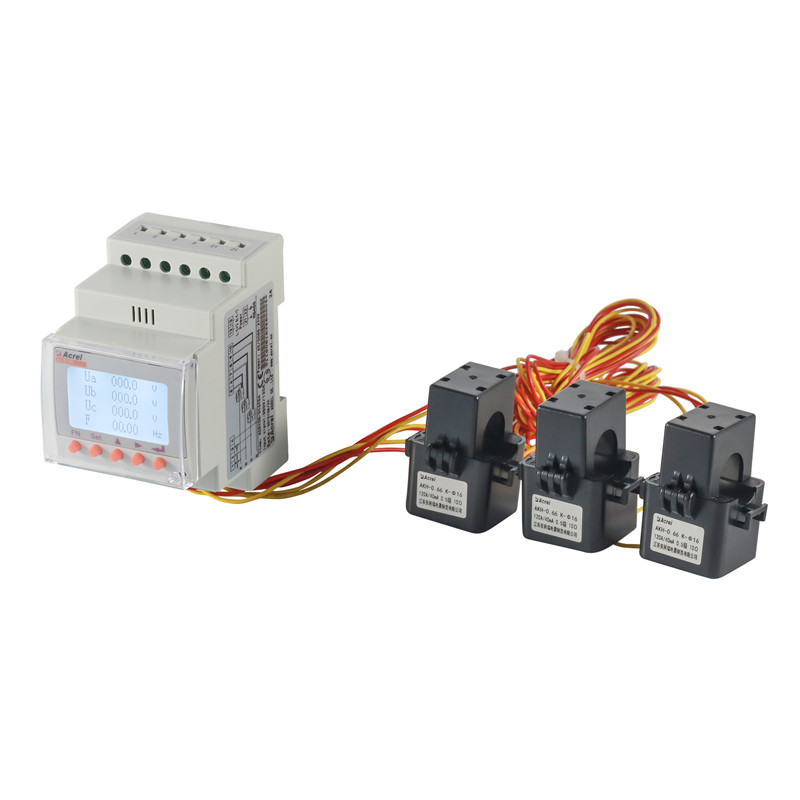

Acrel ACR10R-D16TE4 PV/Solar Inverter Energy Meter
Acrel ACR10R-D16TE4 PV/Solar Inverter Energy Meter
General
ACR10R series rail-type harmonic meter with external Rogowski coils and split-type transformers is suitable for energy-saving renovation projects in high-energy-consuming industries such as smelting, steel, electric welding, semiconductor, etc. It is also suitable for power monitoring of distributed photovoltaic grid-connected cabinets, power demand side management applications. It has the characteristics of no need to dismantle the busbar once, simple and convenient wiring, safe construction, saving transformation costs for users, and improving efficiency.
It integrates the measurement of all power parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor, etc.), multi-rate energy metering, four-quadrant energy metering, harmonics Analysis and power monitoring and assessment management.
Features
Bidirectional Power Metering
● Active Power Metering
● Reactive Power Metering
RS485 Communication
● MODBUS-RTU Protocol
● Communicate with Inverter to realize anti-reflux Function
Paired with external CTs or Rogowski Coil
● Rated Current of CTs: up to 300A
● Rated Current of Rogowski Coil: up to 20000A
LCD Display
● Parameter Display
● Programming Interface
Keypads HMI for Programming
● Parameter Display Setting
● Communication(address, baud rate and etc.)
● Wiring: 3P3W,3P4W
Wiring
Application of AGF-M Solar DC String Monitoring Device
Solor PV Power Distribution Monitoring Solution
ACR10R-DxxTEx Practical Use in Distributed Solar PV
Application of ACR10R-D16TE4 PV/Solar Inverter Energy Meter
• Smelting, steel, electric welding, semiconductor and other high energy consumption industries
• Energy-saving renovation project
• Power monitoring of distributed photovoltaic grid-connected cabinets
• Power demand side management
How to Read Solar Inverter Meter
The five buttons of the instrument are FN button, SET button, button, button, Enter button from left to right.
FN button: the button function is not yet available.
button: In the measurement mode, it is used to switch display items;
In the programming mode, it is used to switch menus of the same level or reduce the units.
button: In the measurement mode, it can be used to see relevant parameters. For details, see the display menu;
In the programming mode, it is used to switch menus of the same level or increase the units.
Enter button: In the programming mode, it is used to confirm the items selected form the menu and the modification of parameters.
button+Enter button: In the programming mode, the combination is used to reduce hundreds
button+Enter button: In the programming mode, the combination is used to increase hundreds
Acrel ACR10R-D16TE4 PV/Solar Inverter Energy Meter
Technical Parameters
| Type |
ACR10R-D16TE4 | |
| Input | Net work | 3-phase 3-wire,3-phase 4 wire |
| Frequency |
45~65Hz
|
|
| Voltage |
AC 57.7V/100V(100V)、220V/380V(400V)
|
|
| Overload:1.2-fold rating(continuous),2-fold rating/1second | ||
| Power consumption: less then 0.2VA | ||
| Current | Rating: 80A,120A,200A .etc（See specific product specifications,special parameters can be customized） | |
| Overload:1.2-fold rating(continuous),10-fold rating/1 second | ||
| Power consumption: less then 0.2VA | ||
| Output | Electric energy | Pulse constant:4000、8000imp/kWh |
| Communication | RS485 interface,Modbus-RTU | |
| Display | LCD | |
| Switch input | Four way dry contact input | |
| Measurement precision | Frequency:0.05Hz,reactive electric energy:1class,other:0.5class | |
| Power supply | AC85～265V or DC100～350V,DC24V（±10%）,DC48V（±10%） Consumption ≤10VA | |
| Safety | Power frequency withstand voltage | Power frequency withstand voltage between Auxiliary power and switch volume output and current input and voltage input and communication and pulse output and switch volume input terminal is AC2kV 1min, Power frequency withstand voltage between auxiliary power and switch volume output and current input voltage input terminal is AC 2kV/1min, Power frequency withstand voltage between communication and pulse output and switch volume input terminal is AC 1kV/1min, |
| Insulating resistor | Input,output terminal to housing>100MQ | |
| Environment | Working temperature | -10℃～+55℃ |
| storage temperature | -20℃～+70°C | |
| Relative humidity | 5%～95% | |
| non-condensing | altitude:≤2500m | |
