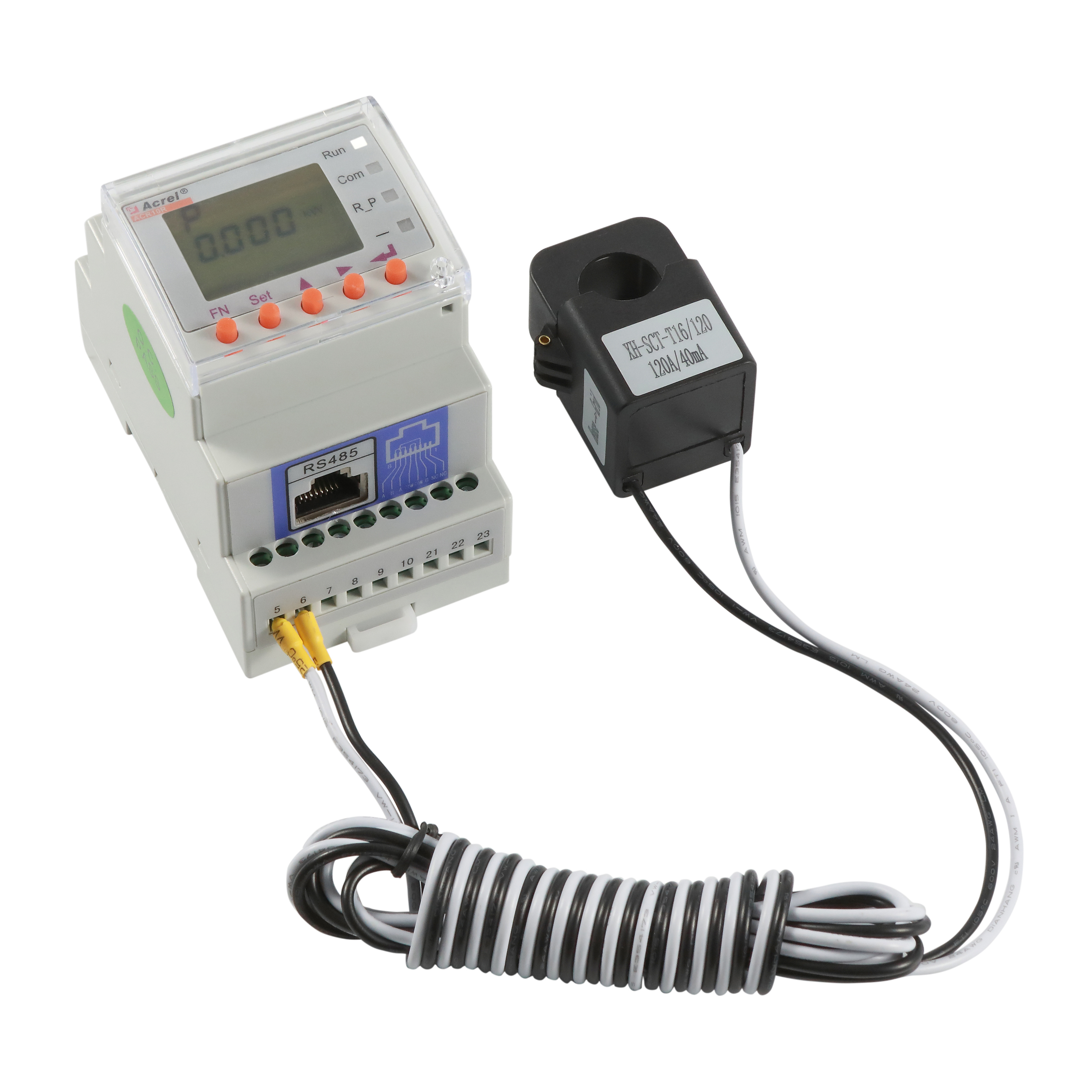

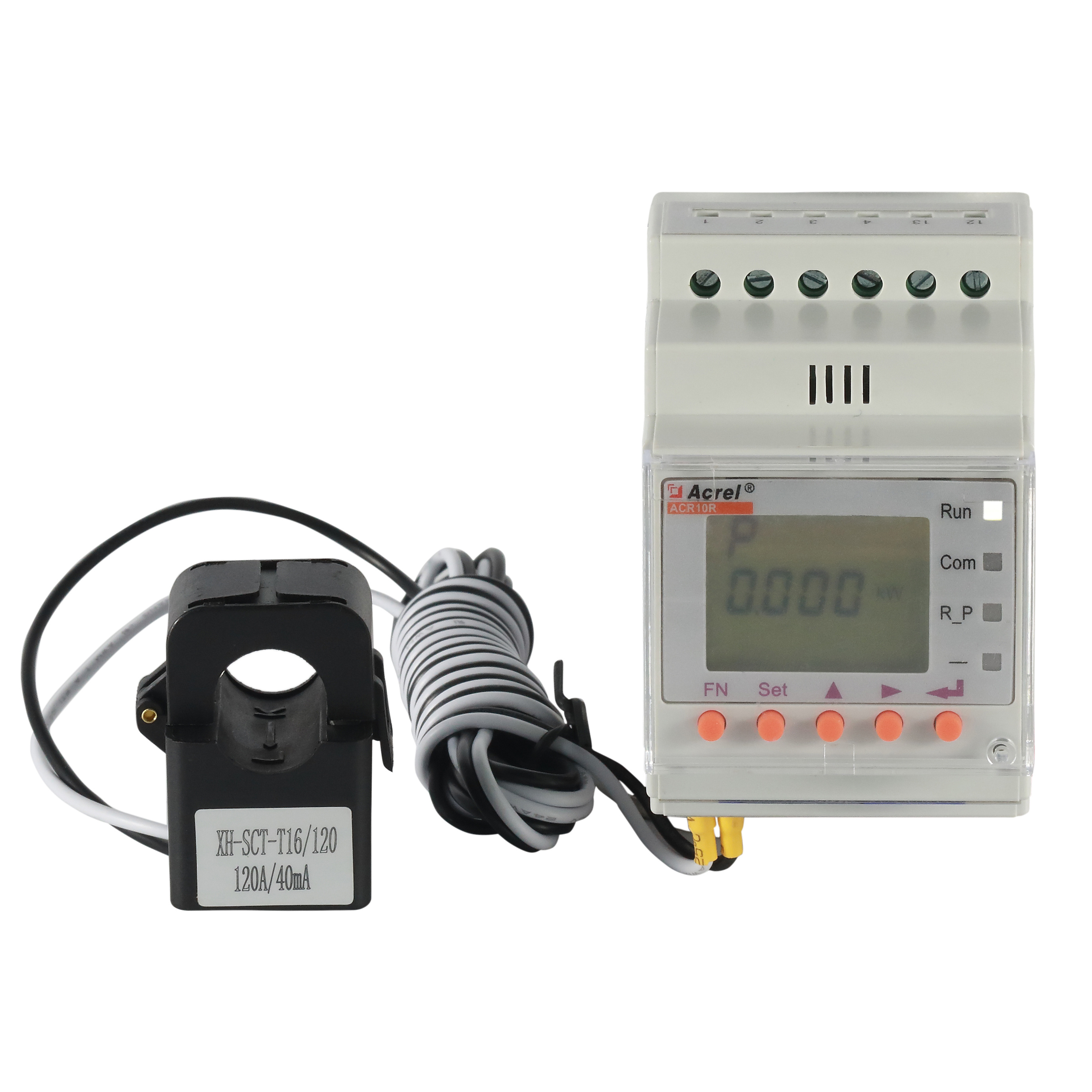

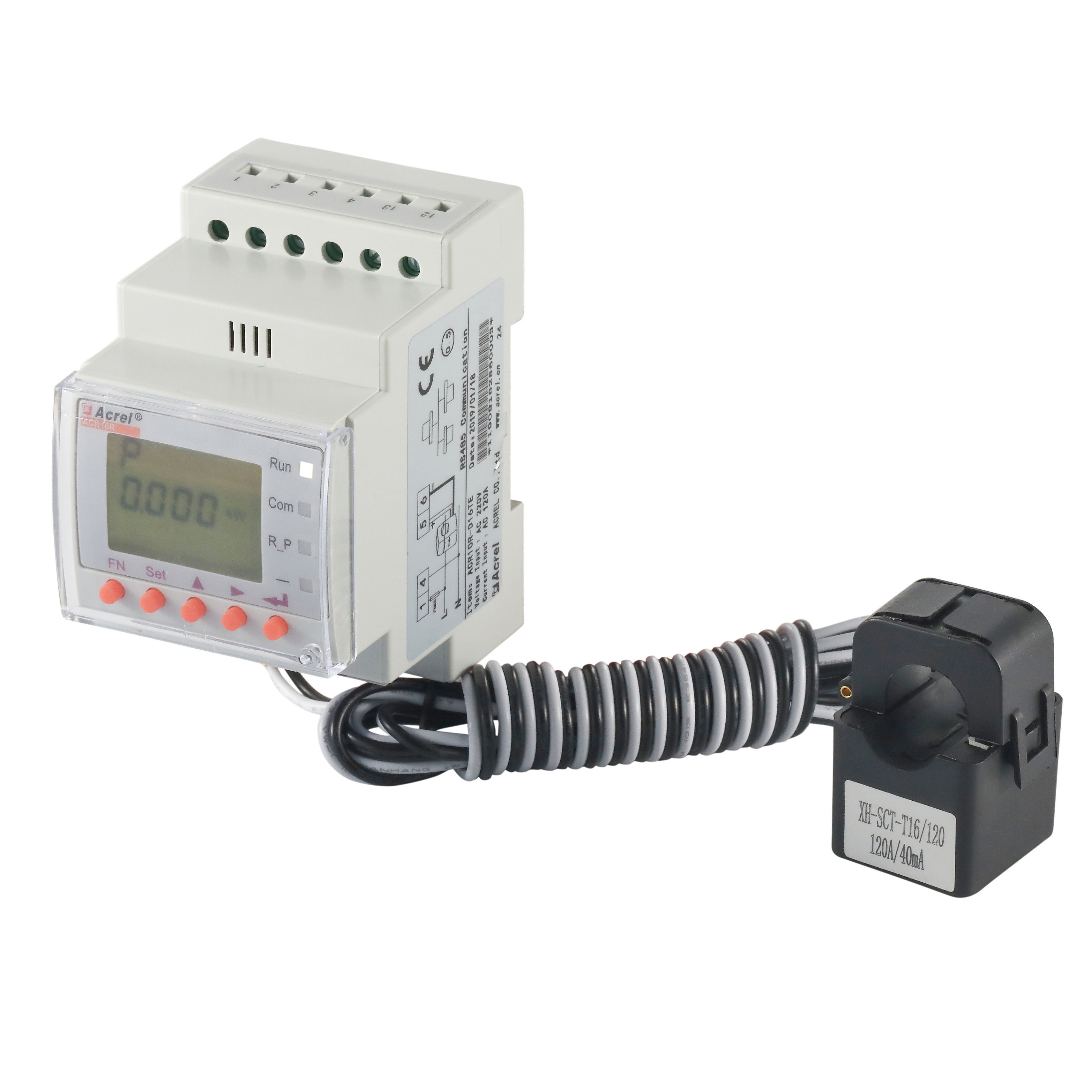

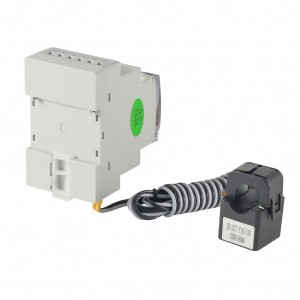

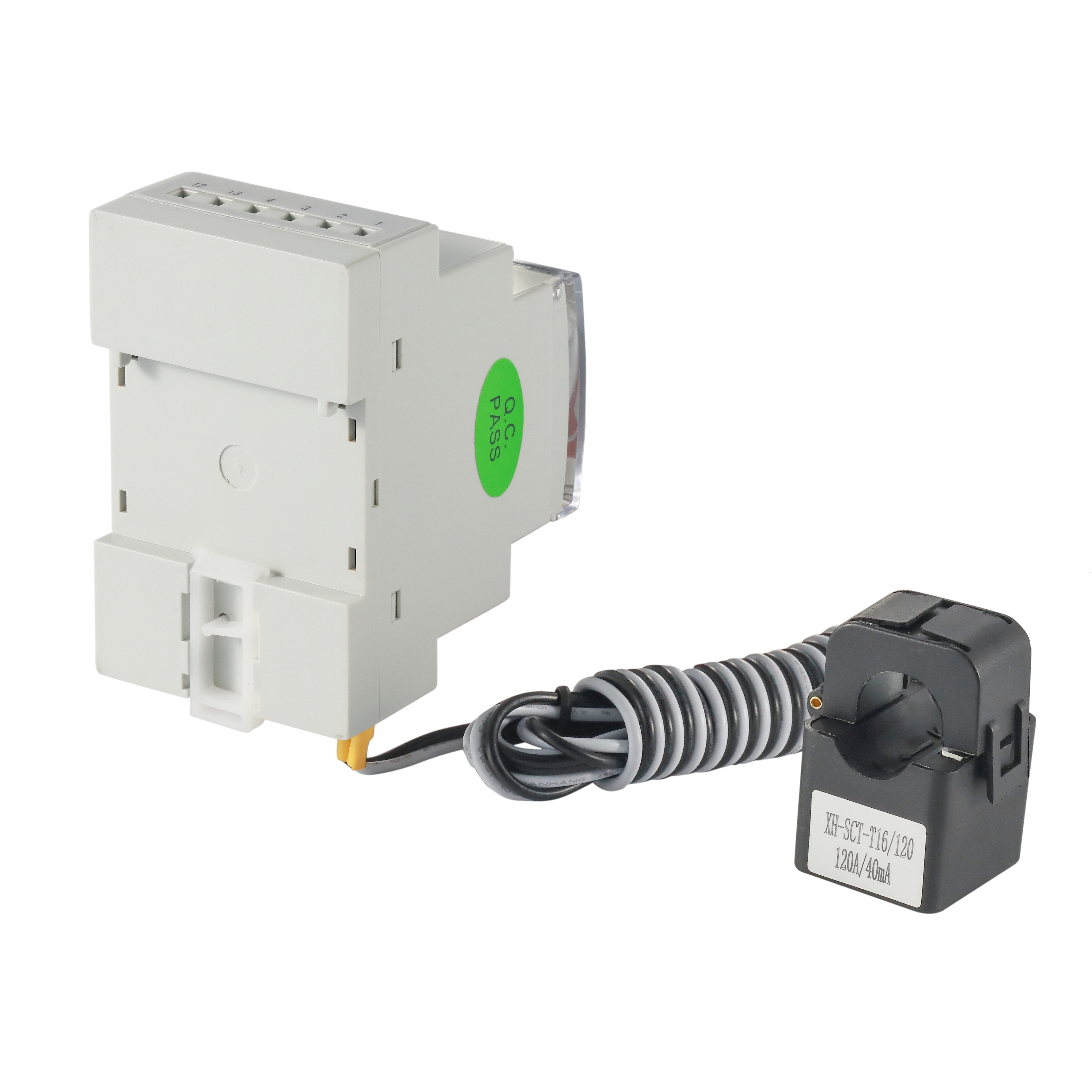

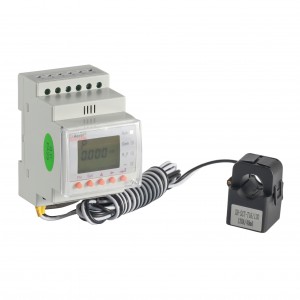

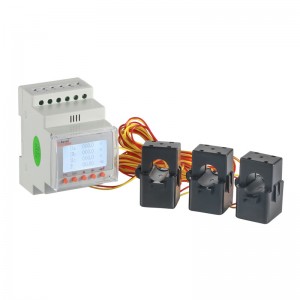

Acrel ACR10R-D16TE PV / Solar Inverter Energy Meter
Acrel ACR10R-D16TE PV / Solar Inverter Energy Meter
General
ACR10R series rail-type harmonic meter with external Rogowski coils and split-type transformers is suitable for energy-saving renovation projects in high-energy-consuming industries such as smelting, steel, electric welding, semiconductor, etc. It is also suitable for power monitoring of distributed photovoltaic grid-connected cabinets, power demand side management applications. It has the characteristics of no need to dismantle the busbar once, simple and convenient wiring, safe construction, saving transformation costs for users, and improving efficiency.
The guide-rail harmonic meter with external Rogowski coil and open type mutual inductor is suitable for energy saving renovation projects in high energy consumption industries such as smelting, steel, electric welding, semiconductor, etc.
Display
Dimension
Wiring
Application of AGF-M Solar DC String Monitoring Device
Solor PV Power Distribution Monitoring Solution
ACR10R-DxxTE Practical Use in Distributed Solar PV
How to Read Solar Inverter Meter
The five buttons of the instrument are FN button, SET button, button, button, Enter button from left to right.
FN button: the button function is not yet available.
button: In the measurement mode, it is used to switch display items;
In the programming mode, it is used to switch menus of the same level or reduce the units.
button: In the measurement mode, it can be used to see relevant parameters. For details, see the display menu;
In the programming mode, it is used to switch menus of the same level or increase the units.
Enter button: In the programming mode, it is used to confirm the items selected form the menu and the modification of parameters.
button+Enter button: In the programming mode, the combination is used to reduce hundreds
button+Enter button: In the programming mode, the combination is used to increase hundreds
Acrel ACR10R-D16TE PV / Solar Inverter Energy Meter
Technical Parameters
| Type |
ACR10R-D16TE4 | |
| Input | Net work |
Single-phase
|
| Frequency |
45~65Hz
|
|
| Voltage |
Rated voltage: AC 100V, 400V
|
|
|
Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
|
||
|
Power consumption: less then 0.2VA
|
||
| Current |
Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications)
|
|
|
Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
|
||
|
Power consumption: less then 0.2VA
|
||
| Output | Communication | RS485 interface,Modbus-RTU |
| Display | LCD | |
|
Measurement precision
|
Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level
|
|
|
Power supply
|
AC85～265V or DC100～350V; power consumption ≤10VA
|
|
| Safety | Power frequency withstand voltage |
AC2kV 1 min between power supply // current input//voltage input and communication
AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
|
| Insulating resistor |
Input,output terminal to housing >100MΩ
|
|
| Environment |
Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃
Relative humidity:5%～95%，non-condensing; altitude:≤2500m
|
|
