General

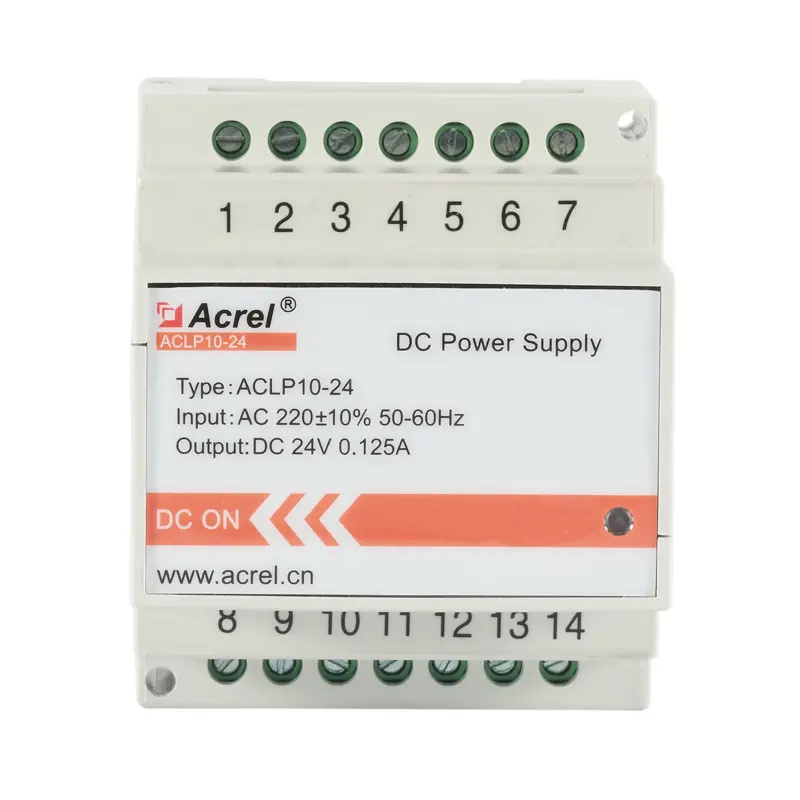

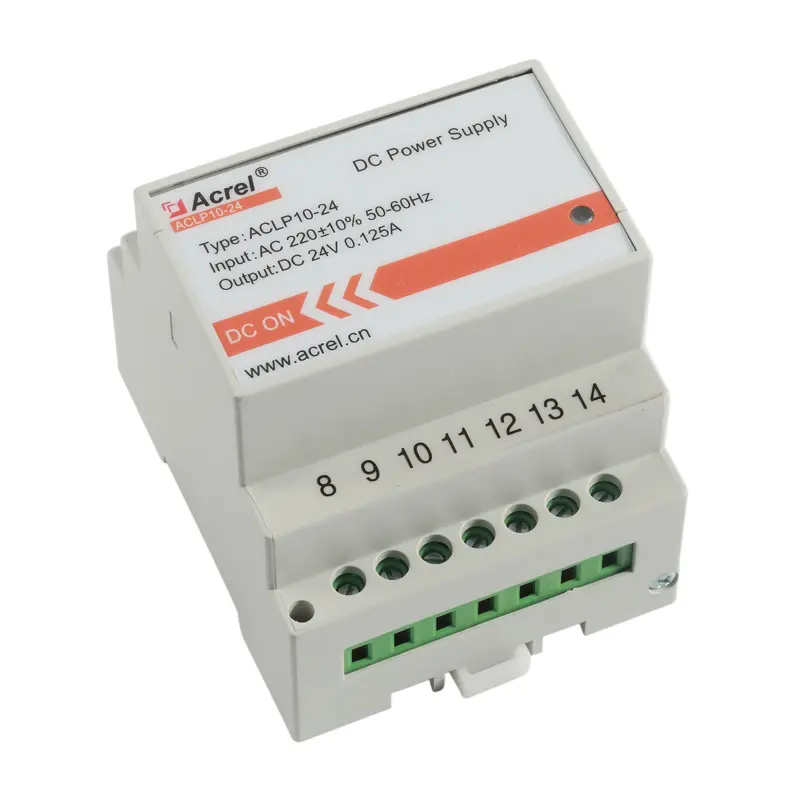

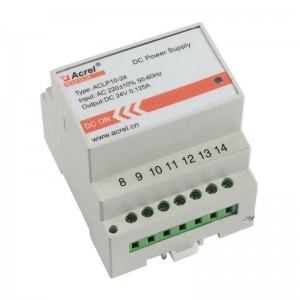

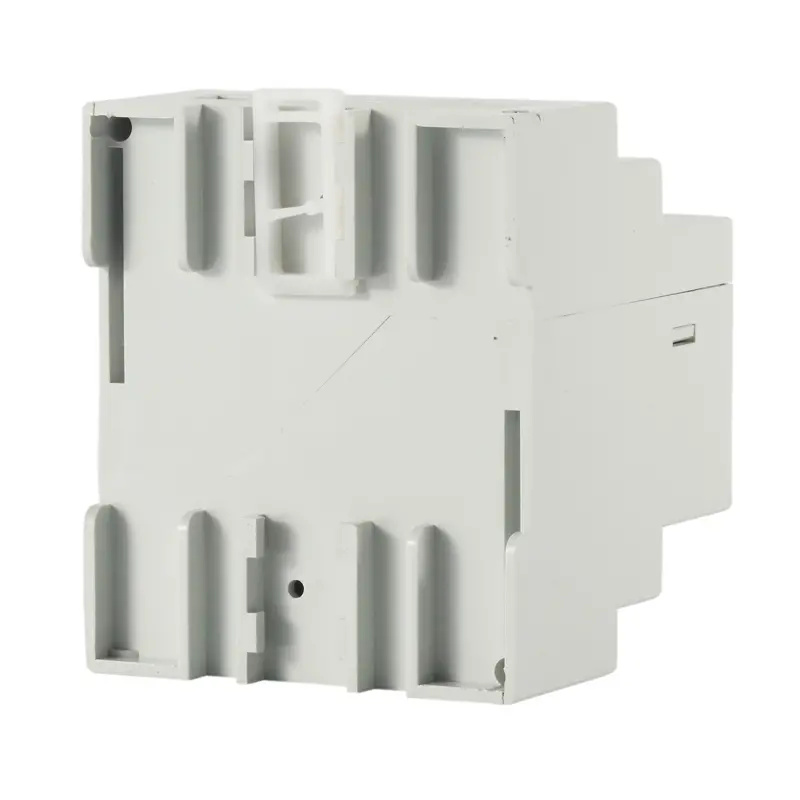

Acrel ACLP10-24 Auxiliary power supply is designed to supply Acrel AID series devices with a supply voltage of DC 24V and a total power consumption of maximum 3VA. Module is rail mounted, installed on the same rail as insulation monitors.
Panel Specification
Wiring
Outline and Dimension
Advantages of Hospital Isolated Power System
Medical isolated power panels provide safe, reliable and continuous power distribution for the important equipment at these locations:
• Used for the transformation of TN system into IT system (ungrounded system)
• Functions of real-time monitoring and fault alarming of the ground insulation resistance, transformer load current and transformer winding temperature of the monitored IT system
• When the monitored IT system has an insulation fault, the hospital isolation panel can initiate and generate the fault location signal to the system, and realize fault locating function with the help of the fault locator
• Acrel hospital isolated power systems can remotely monitor the real-time operating conditions of up to 16 pieces of systems, and the main interface intuitively displays whether the access system communication is intact
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
Acrel ACLP10-24 Auxiliary Power Supply for Medical IT Isolated Power System
Technical Parameters
| Input voltage | AC220V |
| Frequency | 50/60HZ |
| Power | 3W |
| Output voltage | DC24V |
| Voltage regulation | ≤30% |
| Temperature rise | ≤20℃ |
| Withstand voltage | 4000V AC/Min |
