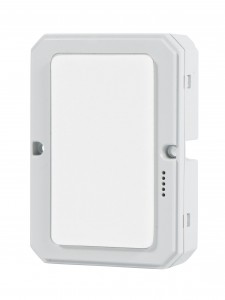

Acrel ABAT100 Series Lead Acid Battery Monitoring Device
Acrel ABAT100 Series Lead Acid Battery Monitoring Device
General
Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.
Typical Connection
Solutions
ABAT100-HS:manage one set of batteries at a time,with a maximum of 120 batteries per set.
ABAT100-S-02/6/12:monitor a 2/612 battery,monitor battery voltage,internal resistance,and negative electrode temperature.
ABAT100-C:monitor a charging and discharging current and an ambient temperature,with a maximum current range of 1000A.
ABAT100-HS:Manage one set of batteries at a time.
ABAT100-S-02/6/12:Monitor a battery,monitor battery voltage,internal resistance,and negative electrode temperature.
ABAT100-C:Monitor a charging and discharging current and an ambient temperature.
Outline and Dimension
On-site Pictures
Acrel ABAT100 Series Lead Acid Battery Monitoring Device
Models
| Model | Function Description |
| ABAT100-HS | DC24V input, one to manage a group of batteries, up to 120 batteries in a group. |
| ABAT100-S-02 | Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature. |
| ABAT100-S-06 | Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature. |
| ABAT100-S-12 | Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature. |
| ABAT100-C | Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A. |

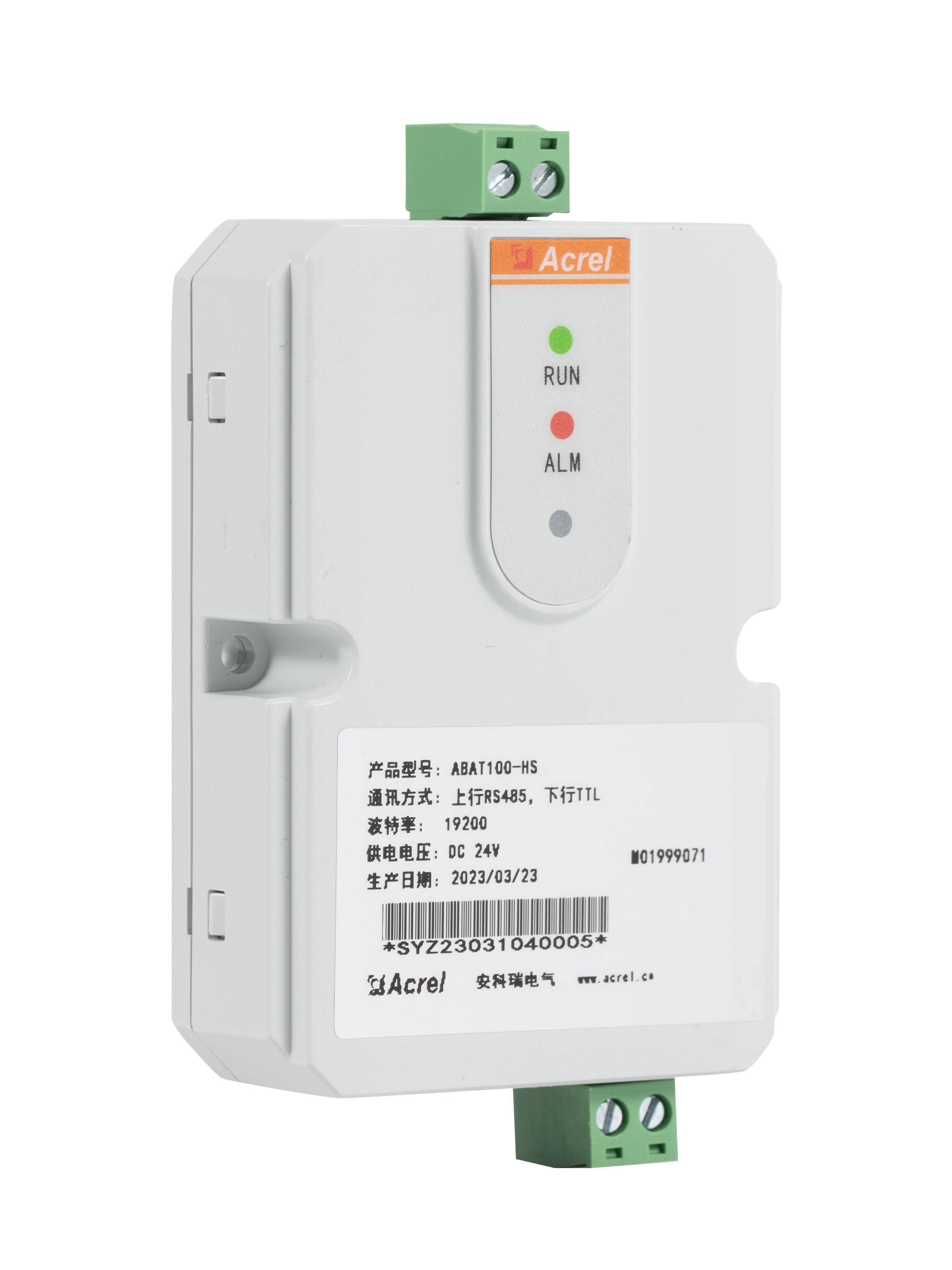

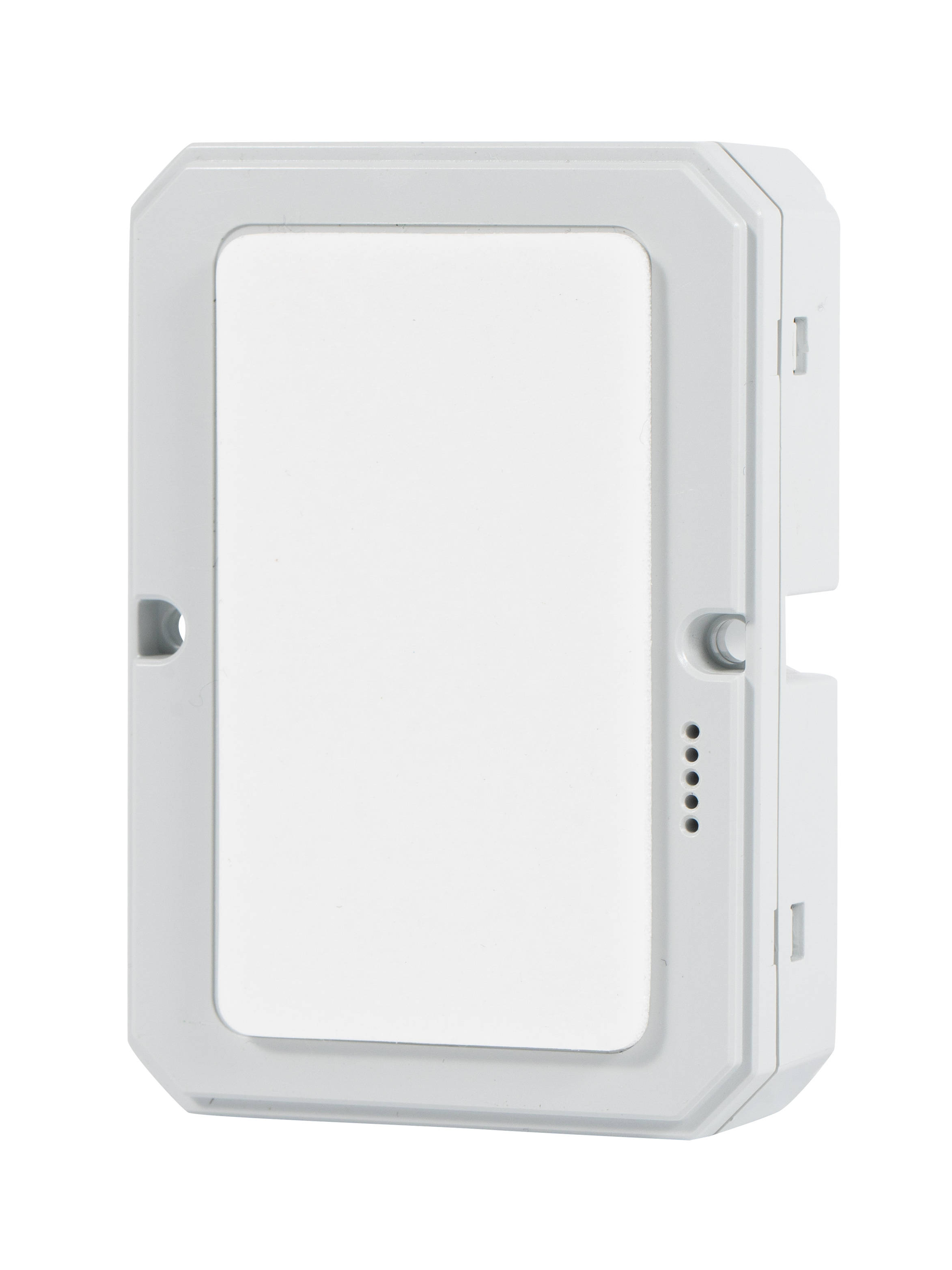

ABAT100-HS Collector Module Technical Parameters
| Function |
Description
|
|
Display
|
Real-time data display, graphs, histogram display
|
|
Historical Data
|
Query and export of equipment operation history, charging and discharging records and monitoring events
|
|
Parameter Configuration
|
Provide basic information management functions
|
|
Communication protocol
|
MODBUS-RTU
|
|
Alarm mode
|
Local audible and visual alarm, indicator alarm, SMS alarm, etc.
|
|
Capacity estimation
|
Group batteries SOC, SOH estimation; single battery SOC, SOH estimation
|
|
Regular inspection
|
Intelligent judgment of the current state and automatic issuance of test commands
|
|
Indicator light
|
Red and green LED lights, green light as the power light, red light as the indicator light
|
|
Technical parameters
|
Description
|
|
Working Environment
|
Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa
|
|
Management Capability
|
One collector can monitor a maximum of total 120 batteries
|
|
Alarm Type
|
Group voltage overcharge/discharge, single voltage overcharge/discharge, current overcharge/discharge, high internal resistance of single unit, abnormal communication, etc.
|
| Power Supply |
DC24V
|
| Protection |
With overvoltage and short circuit protection
|
|
Communication Interface
|
With RS485 communication port, support MODBUS/RTU
|
| Insulation withstand voltage |
2000VAC
|
|
Installation method
|
Tie-down mounting or adhesive mounting
|
|
Weight
|
90g |

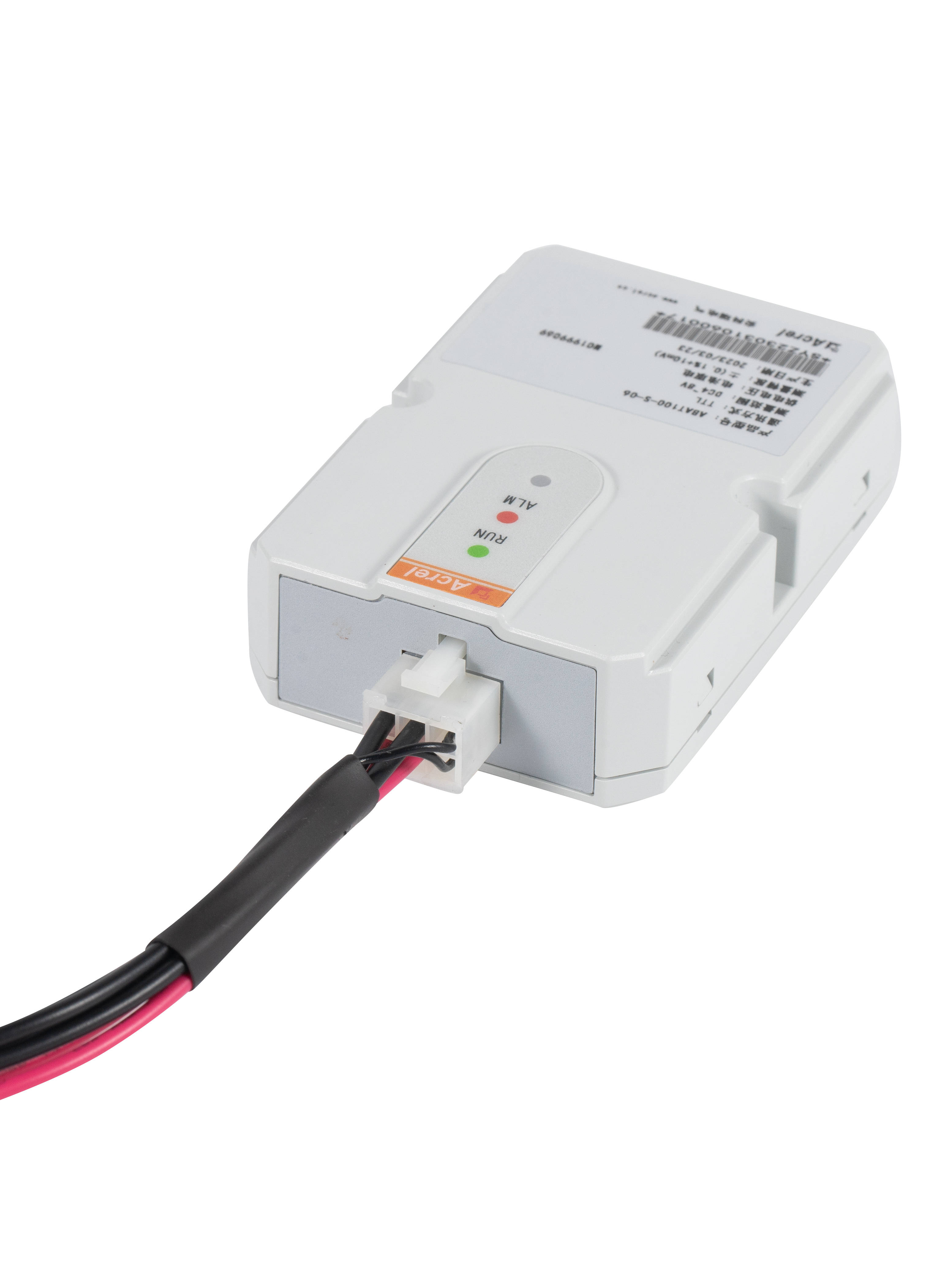

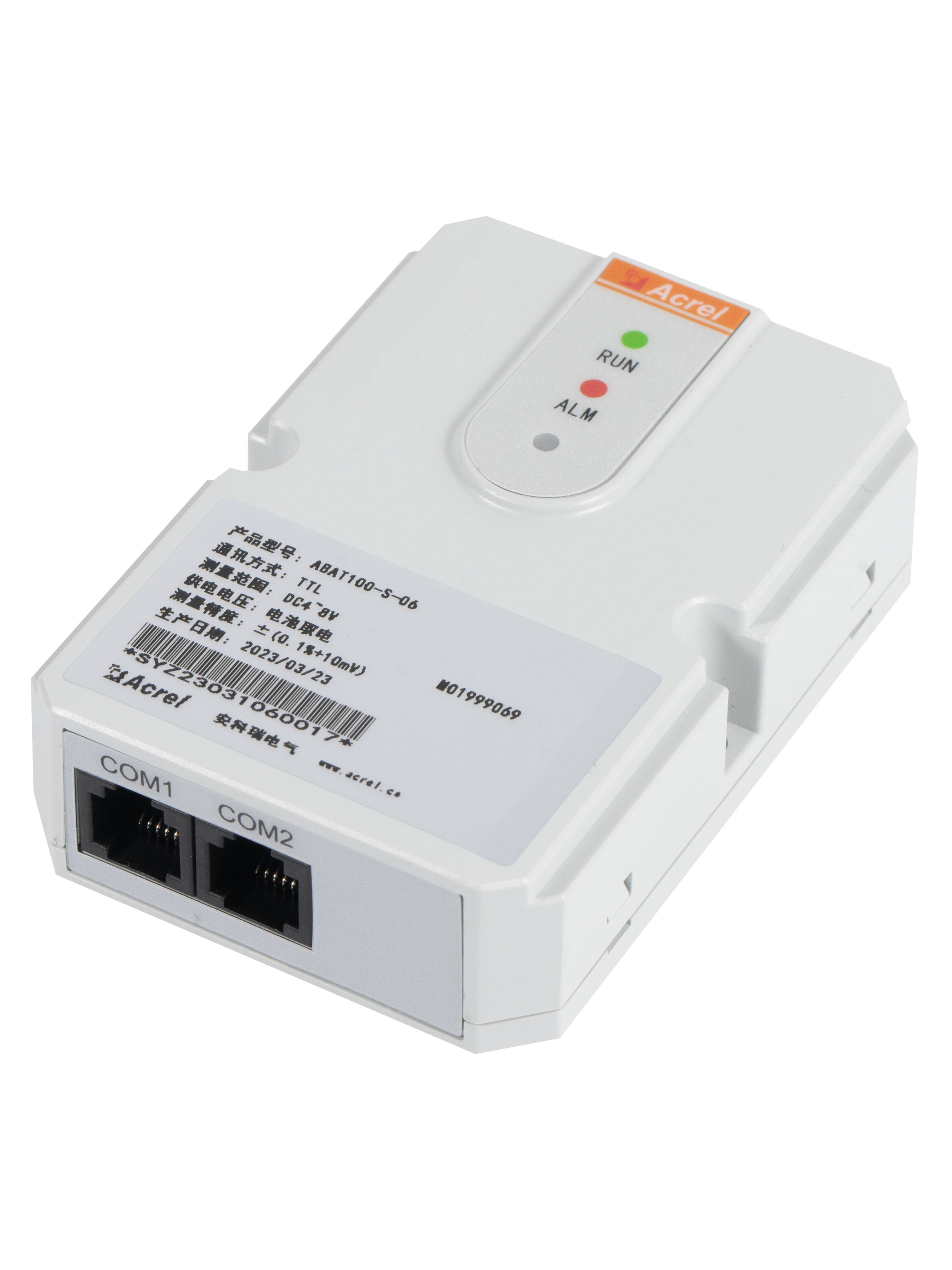

ABAT100-S Single Battery Monitoring Module
|
Function
|
Description |
|
Online monitoring
|
Online monitoring 24 hours a day, one battery per module, monitoring voltage, internal resistance and negative terminal temperature
|
|
High accuracy measurement
|
Internal resistance measurement error as low as 1%
|
|
Battery internal resistance test
|
Automatic periodic measurement of the internal resistance of each battery controlled by the collector
|
|
Low power design
|
Manual entry into low power mode, S-module draws current from the battery down to 0.5mA
|
|
Anti-jamming design
|
High anti-interference design, can block the ripple interference of high power high frequency UPS
|
|
Communication protocol
|
MODBUS-RTU protocol
|
|
Installation method
|
Tie-down mounting or adhesive mounting
|
|
Indicator light
|
Red and green LED lights, green light as the power light, red light as the indicator light
|
|
Technical parameters
|
Description
|
||
|
Working Environment
|
Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa
|
||
|
Monitoring Capability
|
One S-module monitors one battery
|
||
|
Monitoring Scope
|
2V, 6V, 12V battery with capacity less than 3000AH
|
||
|
Measurement range and accuracy
|
Measurement content
|
Scope
|
Accuracy
|
|
Single Voltage
|
2V, 6V, 12V
|
±0.1%
|
|
|
Single internal resistance
|
50～65535uΩ
|
(Resolution) 1uΩ
|
|
|
Negative temperature
|
-5℃～+105℃
|
±1°C
|
|
|
Power requirements
|
Directly from the monitored battery, 2V module normal operation of the absorption current of 10mA, the maximum is not more than 13mA, 6V, 12V module normal operation of the absorption current of 5mA, the maximum is not more than 7mA, different modules absorption current consistency is very high
|
||
|
Protection
|
Measuring circuit and power circuit with two levels of protection, with reverse connection protection and opto-isolation
|
||
|
Communication Interface
|
UART port, support MODBUS protocol
|
||
|
Insulation withstand voltage
|
2000VAC
|
||
|
Weight
|
90g | ||

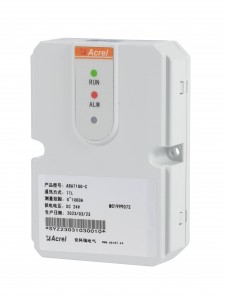

ABAT100-C Module
|
Function
|
Description
|
|
High stability
|
Reliable and stable long-term operation
|
|
Anti-jamming design
|
High anti-interference design, can block the ripple interference of high power high frequency UPS
|
|
Communication protocol
|
MODBUS-RTU Protocol
|
|
Installation method
|
Tie-down mounting or adhesive mounting
|
|
Indicator light
|
Red and green LED lights, green light as the power light, red light as the indicator light
|
| Technical parameters |
Description
|
||
|
Working Environment
|
Operating temperature: -10℃～50℃
Relative humidity: 5%~95%
Atmospheric pressure intensity: 80~110kPa
|
||
|
Monitoring Capability
|
One C-module monitors the charge and discharge current of a group of batteries against the ambient temperature
|
||
|
Monitoring Scope
|
2V, 6V, 12V battery pack
|
||
|
Measurement range and accuracy
|
Measurement content
|
Scope
|
Accuracy
|
|
Charging and discharging current
|
0~1000A
|
±1%
|
|
|
Ambient temperature
|
-5℃～+105℃
|
±1°C
|
|
|
Power requirements
|
DC24V, 1W
|
||
|
Protection
|
Measurement circuit and power circuit with two levels of protection
|
||
|
Communication Interface
|
UART port, support MODBUS protocol
|
||
|
Insulation withstand voltage
|
2000VAC
|
||
|
Weight
|
90g
|
||
