Acrel-2000ES Energy Storage Management System (EMS)
Acrel-2000ES Energy Storage Management System (EMS)
General
The Acrel-2000ES system, developed by Acrel, is a comprehensive energy management system specifically designed for industrial and commercial energy storage cabinets and containers. It integrates functions such as data acquisition, processing, storage, visual monitoring, alarm management, and statistical reporting. The system comprehensively manages devices like PCS, BMS, and electricity meters, providing real-time monitoring of the energy storage system's operational status. It optimizes battery performance, enhances system efficiency, and improves safety. With support for multiple communication modes and device integrations, the Acrel-2000ES system serves as an efficient management tool in the industrial and commercial energy storage sector.
Features of Acrel-2000ES Energy Storage Management System (EMS)
It can be used for both energy storage integrated cabinets and energy storage containers, serving as a dedicated software system for equipment management.
1.All System Management
2.Peak-Valley Arbitrage
3.Power Demand Control
4.Back-up Power Source
Solution Structure of Acrel-2000ES system
Benefits of Acrel-2000ES Energy Storage Management System (EMS)
All System Management
Acrel-2000ES could integrate with ESS and manage all sub system including PCS, BMS, air conditioner, fire protection, energy monitoring and etc.
Peak-Valley Arbitrage
By using the energy management and control plan of Acrel-2000ES, we could realize peak shaving &valley filling energy usage strategy for peak-valley arbitrage.
Benefit of peak-valley arbitrage could be check in Acrel-2000ES energy magament system.

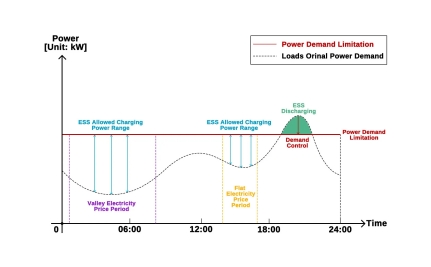

Power Demand Control
Acrel-2000ES could set a power demand threshold and manage all the power system in micro-grids so that the overall loads power demand won't exceed this limitation value. No extra fine happend due to exceeding the power demand.
Back-up Power Source
Acrel-2000ES EMS system could set the plan for back-up power source to prevent the influence of unpredicatable power outage.
Software Overview of Acrel-2000ES system
System Homepage
Homepage include a general view of PCS&BMS working status, charging&discharging energy, income gain by optimized power control, SOC curve, system power curve, air conditioning/fan/fire/ups protection working status and etc.
Optimized Power Control
Acrel-2000ES could set various charging&discharging control plan to realize optimized power operation for saving your money and make profit. Such as peak-valley arbitrage, max demand control, zero export to grids control, back-up energy for power outage prevention and etc.
PCS Management
Providing a general management and monitoring for PCS including grid-connected&off-grid running mode switch, PCS on/off control current&voltage&power monitoring and alarm threshold setting, fault alarm status, battery SOC&voltage¤t monitoring&alarm and etc.
BMS Management
General monitoring for BMS including charger&discharger stutus, battery SOC&SOH, battery voltage¤t&temperature monitoring and threshold exceeding alarm.
Diesel Generator Management
General monitoring for diesel generator including common electricity and engine status monitoring, diesel generator fault alarm status and etc.
Energy Metering
By connecting to energy meter for monitoring all common electricity parameter and charging&discharging energy of overall ESS system.

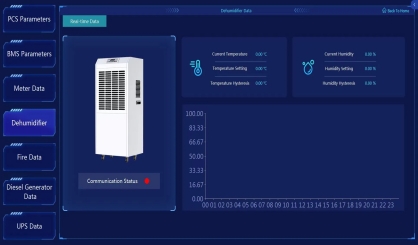

Dehumidifier Monitoring
General monitoring for dehumidifier including working ambient tempertaure&humidity, communications status.
Fire Monitoring
General monitoring for fire protection system in ESS. By connecting I/O module to related sensor for monitoring the fire equipment working status.
Hardware Overview of Acrel-2000ES system

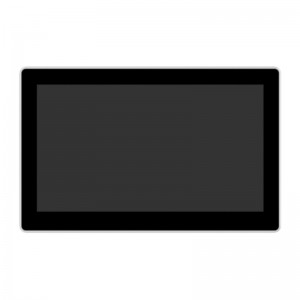

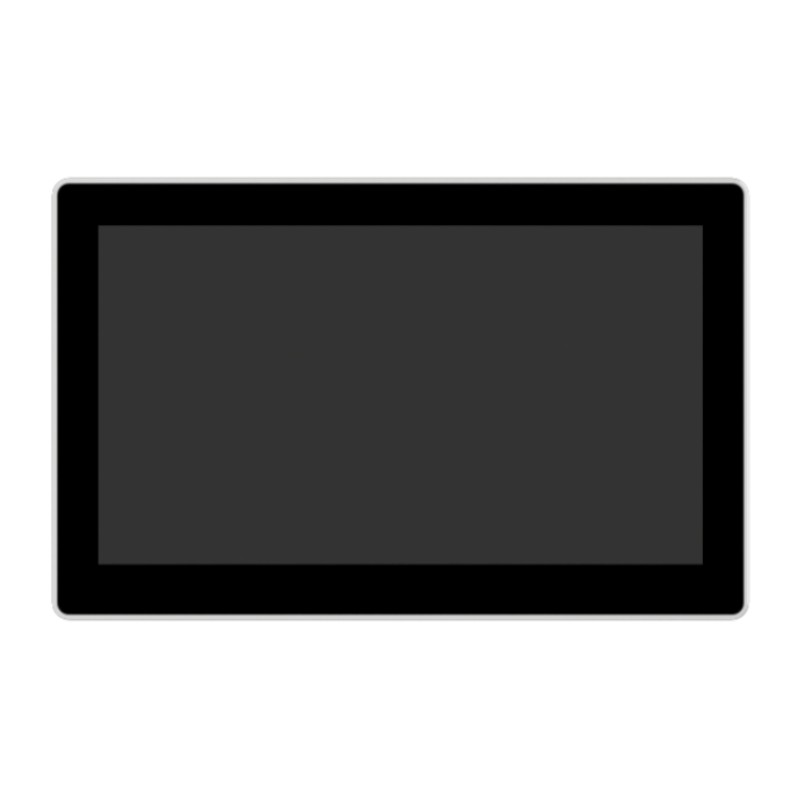

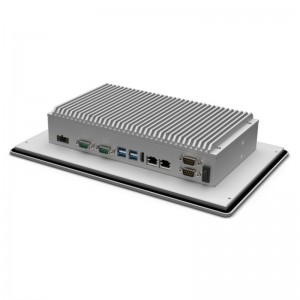

Acrel-2000ES Software and Industrial Tablet PC
PC&Software
Data collection and monitoring of internal equipment,consisting of communication management machine,industrial tablet PC,serial server,remote signaling module,and related communication accessories.
Data collection,upload,and forwarding to server and coordinated control devices.Strategy control:planned curves,demand control,peak shaving and valley filling,backup power,etc.
ANET Seires
IoT Gateway
The ANET series IoT gateway utilizes an embedded hardware computing platform and features multiple downstream communication interfaces and multiple upstream network interfaces. It is designed to aggregate and organize communication data from all intelligent monitoring/protection devices within a target area and upload it in real-time to the master station system. This setup completes the functions of remote signaling and remote measurement for energy data collection.
ADL3000-E Series
3-phase DIN-rail Multi-function Energy Meter
The ADL3000-E is an intelligent electric meter specifically designed for power supply systems, industrial and mining enterprises, and utility companies. It is used to calculate electricity consumption and manage electrical demand. Key features include high accuracy, compact size, and easy installation. The device integrates measurement of all electrical parameters and comprehensive power metering management, providing data for the past 12 months. It can check the content of up to 31 harmonics and total harmonic distortion. Remote communication and control are enabled through digital inputs and relay outputs, and it also features alarm outputs. The ADL3000-E is suitable for various control systems, SCADA systems, and energy management systems. All instruments comply with the relevant technical requirements of IEC62053-21 and IEC62053-22 standards for power meters.
DJSF1352 Seires
DC DIN-rail Multi-function Energy Meter
Measures voltage,current,power,and bidirectional energy in DC systems;Optional dual channel DC metering; Equipped with infrared communication interface and RS-485 communication interface,supporting both Modbus RTU protocol;Can be equipped with relay alarm output and switch input functions.
ARTM-8 Series
Temperature Monitor
Suitable for multi-channel temperature measurement and control,supports up to 8-channel Pt100 temperature measurement,with optional channel shielding;each channel temperature measurement corresponds to 2-stage alarm,relay output can set alarm direction and value.
ARTU Series
Remote I/O Modules
[1] Feedback the on/off status of each device via I/O,and send the related data to the upstream gateway and system;
[2] Read fire protection I/O signals and forward them to the upper layer (shutdown,event reporting,etc.)
[3] Collect water immersion sensor information and forward it to the upper layer (water immersion signal event reporting)
[4] Read access control sensor information and forward it to the upper layer (access control event reporting)
Project Study of Acrel-2000ES system
Project Case 1: Micro-grid [Solar PV&ESS&EV Charging&Grids] Energy Management&Control Project in a Tobacco Company
This project involves the implementation of a solar, storage, and charging system for a tobacco company. The aim is to fully utilize solar energy to achieve green power usage, ensuring the safe operation of photovoltaic (PV), storage, and charging systems, while reducing electricity costs.
Project Case 2: Solar PV, Energy Storage and EV Charger Management Project for a Tobacco Company
The solar and storage project at a monastery in Myanmar aims to fully utilize solar energy resources to achieve green electricity usage while ensuring the safe and stable operation of the photovoltaic (PV), storage, and grid systems. This project not only helps reduce electricity costs but also improves energy utilization efficiency.
Major Application of Acrel-2000ES system
Acrel-2000ES Energy Storage Management System (EMS)
1. Manual for Acrel-2000ES Energy Storage Management System (EMS)
2. Installation and Use for Acrel-2000ES Energy Storage Management System (EMS)
3. Debugging Software for Acrel-2000ES Energy Storage Management System (EMS)
